Enerpac® CULP50 CULP50

Enerpac® CULP50

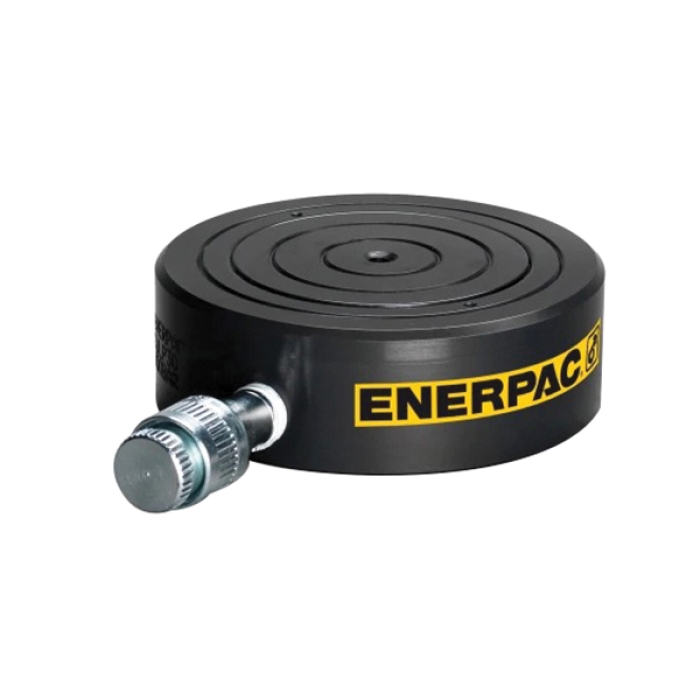

ENERPAC® CULP Nitrocarbonized Steel Low Profile Ultra Flat Hydraulic Cylinder with Stop-Ring, 50 ton, 3.94 in Bore Dia, 1.75 in H Collapsed x 3.94 in H Extended

  • Manufacturer: Enerpac
  • Brand: Enerpac®
  • ARGPN: CULP50
  • MPN: CULP50
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Enerpac factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

ENERPAC® Low Profile Ultra Flat Hydraulic Cylinder with Stop-Ring, Series: CULP, 3.94 in Bore Diameter, 0.24 in Length Stroke, 1-3/4 in Length Retracted, 10150 psi, Base Mount, Material Construction: Steel, Finish: Nitrocarbonized, 50 ton Capacity, Solid Plunger, 1.75 in Collapsed x 3.94 in Extended Height, 5.51 in OD

Bore Diameter      :      3.94 in
Capacity      :      50 ton
Finish      :      Nitrocarbonized
Height      :      1.75 in Collapsed x 3.94 in Extended
Material      :      Steel
Material Construction      :      Steel
Mounting Type      :      Base
Outside Diameter      :      5.51 in
Plunger Type      :      Solid
Pressure Rating      :      10150 psi
Product Type      :      Hydraulic Cylinder
Retracted Length      :      1-3/4 in
Series      :      CULP
Stroke Length      :      0.24 in
  • Up to 4% side load of maximum capacity
  • Stop-ring for maximum stroke limitation
  • Extremely low collapsed height
  • Nitrocarburized surface treatment for harsh conditions
  • Coupler AR630 including dust cap use HB7206 hose including AH630 coupler to connect to your pump
  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Enerpac_CULP10_SS_NEW2021.pdf
