Enerpac® RC50 RC-50

Enerpac® RC50

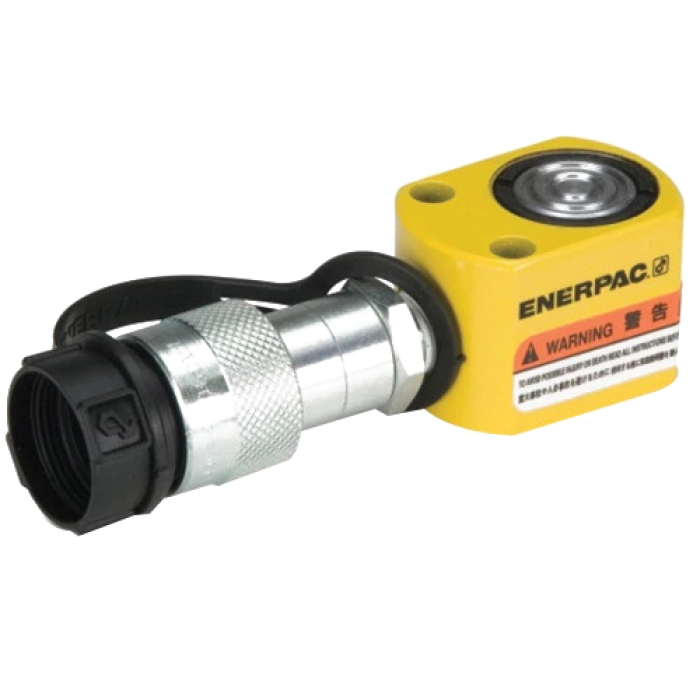

ENERPAC® RC Series Baked Enamel Steel General-Purpose Hydraulic Cylinder, 4.9 ton, 1.13 in Bore Dia, 1.63 in H Collapsed x 2.55 in H Extended

  • Manufacturer: Enerpac
  • Brand: Enerpac®
  • ARGPN: RC-50
  • MPN: RC50
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Enerpac factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

ENERPAC® General-Purpose Hydraulic Cylinder, Series: RC, 1.13 in Bore Diameter, 0.63 in Length Stroke, 1.63 in Length Retracted, 1 in Rod, 10000 psi, Base Mount, Material Construction: Steel, Finish: Baked Enamel, 4.9 ton Capacity, 1 in Solid Plunger, 1.63 in Collapsed x 2.55 in Extended Height, 2.31 in OD

Bore Diameter      :      1.13 in
Capacity      :      4.9 ton
Finish      :      Baked Enamel
Height      :      1.63 in Collapsed x 2.55 in Extended
Material      :      Steel
Material Construction      :      Steel
Mounting Type      :      Base
Outside Diameter      :      2.31 in
Plunger Type      :      1 in Solid
Pressure Rating      :      10000 psi
Product Type      :      Hydraulic Cylinder
Retracted Length      :      1.63 in
Rod Size      :      1 in
Series      :      RC
Stroke Length      :      0.63 in
  • Unique GR2 bearing design, reduces wear, extending life
  • Base-mounting holes enable easy fixturing
  • High-strength alloy steel for durability
  • Redesigned cylinder thread protector for ease-of-use
  • Heavy-duty, pre-tensioned spring improves retraction speed
  • Baked enamel finish for increased corrosion resistance
  • CR-400 coupler and dust cap included on all models
  • Plunger wiper reduces contamination, extending cylinder life

Applications: For use in all positions
