Enerpac® RSM200 RSM-200

Enerpac® RSM200

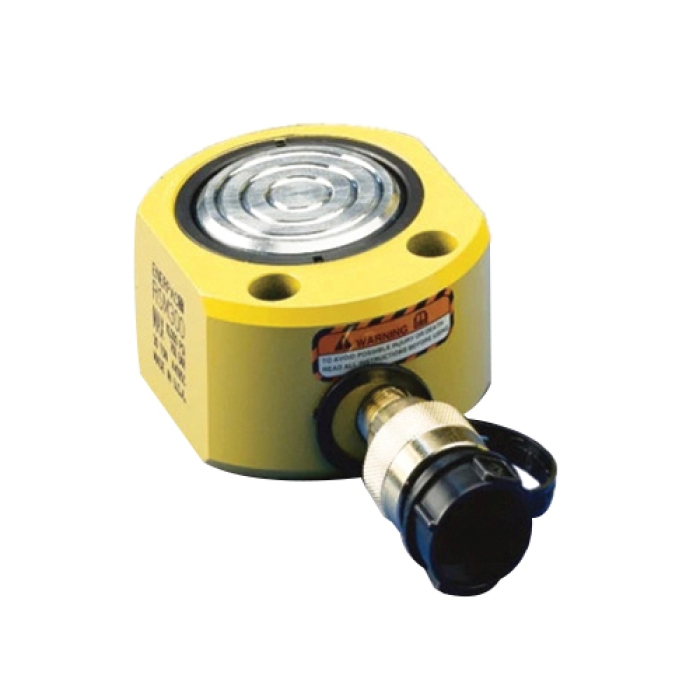

ENERPAC® RSM Baked Enamel/Chrome-Plated Steel Low Height Hydraulic Cylinders, 22.1 ton, 2.38 in Bore Dia, 2.03 in H Collpsed x 2.47 in H Extended

  • Manufacturer: Enerpac
  • Brand: Enerpac®
  • ARGPN: RSM-200
  • MPN: RSM200
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Enerpac factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

ENERPAC® Low Height Hydraulic Cylinder, Series: RSM, 2.38 in Bore Diameter, 0.44 in Length Stroke, 2.03 in Length Retracted, 2 in Rod, 10000 psi, Material Construction: Steel, Finish: Baked Enamel/Chrome-Plated, 22.1 ton Capacity, 2 in Solid Plunger, 2.03 in Collapsed x 2.47 in Extended Height, 4 x 3 in OD

Bore Diameter      :      2.38 in
Capacity      :      22.1 ton
Finish      :      Baked Enamel/Chrome-Plated
Height      :      2.03 in Collapsed x 2.47 in Extended
Material      :      Steel
Material Construction      :      Steel
Outside Diameter      :      4 x 3 in
Plunger Type      :      2 in Solid
Pressure Rating      :      10000 psi
Product Type      :      Hydraulic Cylinder
Retracted Length      :      2.03 in
Rod Size      :      2 in
Series      :      RSM
Stroke Length      :      0.44 in
  • Compact, flat design for use where other cylinders will not fit
  • Mounting holes permit easy fixturing
  • CR-400 coupler and dust cap included on all models
  • Hard chrome-plated high-quality steel plungers
  • Grooved plunger ends require no saddle
  • Single-acting, spring return
