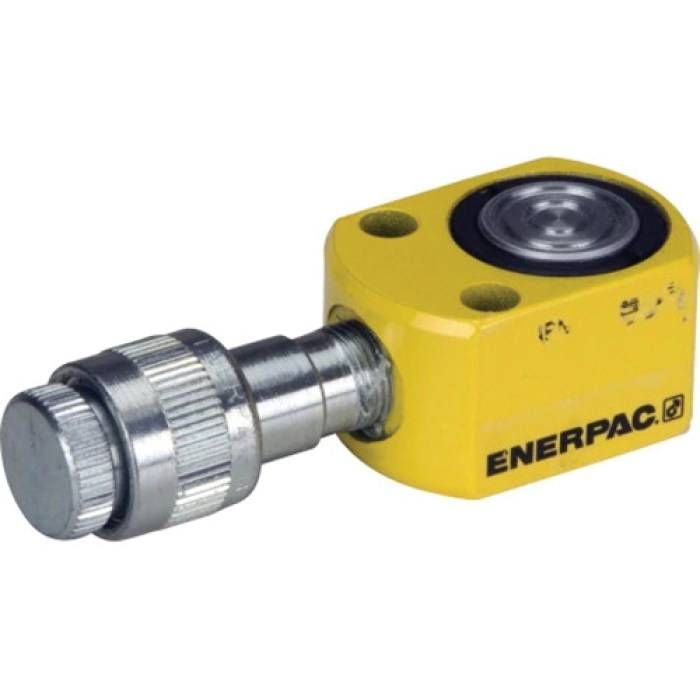

Enerpac® RSM50 RSM-50

Enerpac® RSM50

ENERPAC® RSM Baked Enamel/Chrome-Plated Steel Low Height Hydraulic Cylinders, 4.9 ton, 1.13 in Bore Dia, 1.28 in H Collpsed x 1.53 in H Extended

  • Manufacturer: Enerpac
  • Brand: Enerpac®
  • ARGPN: RSM-50
  • MPN: RSM50
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Enerpac factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

ENERPAC® Low Height Hydraulic Cylinder, Series: RSM, 1.13 in Bore Diameter, 1/4 in Length Stroke, 1.28 in Length Retracted, 1 in Rod, 10000 psi, Material Construction: Steel, Finish: Baked Enamel/Chrome-Plated, 4.9 ton Capacity, 1 in Solid Plunger, 1.28 in Collapsed x 1.53 in Extended Height, 2.31 x 1.63 in OD

Bore Diameter      :      1.13 in
Capacity      :      4.9 ton
Finish      :      Baked Enamel/Chrome-Plated
Height      :      1.28 in Collapsed x 1.53 in Extended
Material      :      Steel
Material Construction      :      Steel
Outside Diameter      :      2.31 x 1.63 in
Plunger Type      :      1 in Solid
Pressure Rating      :      10000 psi
Product Type      :      Hydraulic Cylinder
Retracted Length      :      1.28 in
Rod Size      :      1 in
Series      :      RSM
Stroke Length      :      1/4 in
  • Compact, flat design for use where other cylinders will not fit
  • Mounting holes permit easy fixturing
  • CR-400 coupler and dust cap included on all models
  • Hard chrome-plated high-quality steel plungers
  • Grooved plunger ends require no saddle
  • Single-acting, spring return
