Everflex® B-1310 B-1310

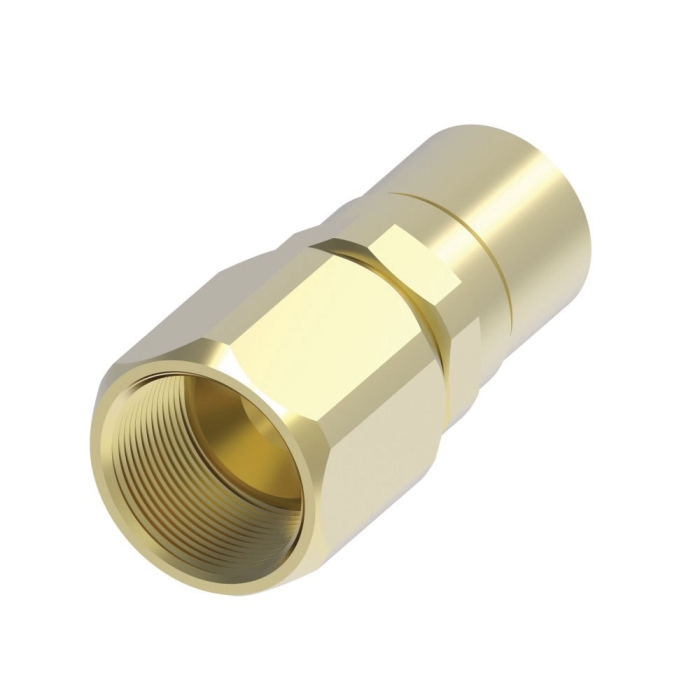

Everflex® Everswage Brass Male 37 deg JIC Swivel Permanent Swage Straight Hose Fitting

Everflex® Everswage Permanent Swage Straight Hose Fitting, Hose X 37 deg JIC Swivel, Brass

  • Add to cart
    Add To Favorites
    • pin-int

    Everflex® Everswage Permanent Swage Straight Hose Fitting, Connection Type 1: Hose, Gender 1: Male, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 5/8 in, Nominal Size: 5/8 in, Thread Size 2: 7/8-14, Hex Size: 1 x 7/8 in, 1500 psi, Cut-Off Factor: 1.3 in, Material Construction: Brass, For Use With: Everflex STW, SCTW, B, M, S, and SC Series Hoses, Dimensions: 2 in L x 1 in W x 1.15 in H

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1/2 in
    Connection Size 2      :      5/8 in
    Connection Type      :      Hose~JIC Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      37 deg JIC Swivel
    Cut-Off Factor      :      1.3 in
    Dimensions      :      2 in L
    Fitting Type      :      Straight Hose Fitting
    For Use With      :      Everflex STW, SCTW, B, M, S, and SC Series Hoses
    Gender 1      :      Male
    Gender 2      :      Female
    Hex Size      :      1 x 7/8 in
    Hose Dash Size      :      08
    Material      :      Brass
    Material Construction      :      Brass
    Nominal Size      :      5/8 in
    Pressure Rating      :      1500 psi
    Shape      :      Straight
    Sub Brand      :      Everswage
    Thread Size 2      :      7/8-14

    The Eaton Everswage fittings are permanently attached to smooth bore Teflon hose using a swaging process. Multiple configurations are available as well as both components and complete fitting assemblies.

    • Mix and match components for optimum inventory

    Applications: High-temperature hydraulics, chemical transfer, clean FDA applications, steam and corrosive environment

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Everflex_870000-12-CZ_CAT.pdf
