Everflex® S-1304 S-1304

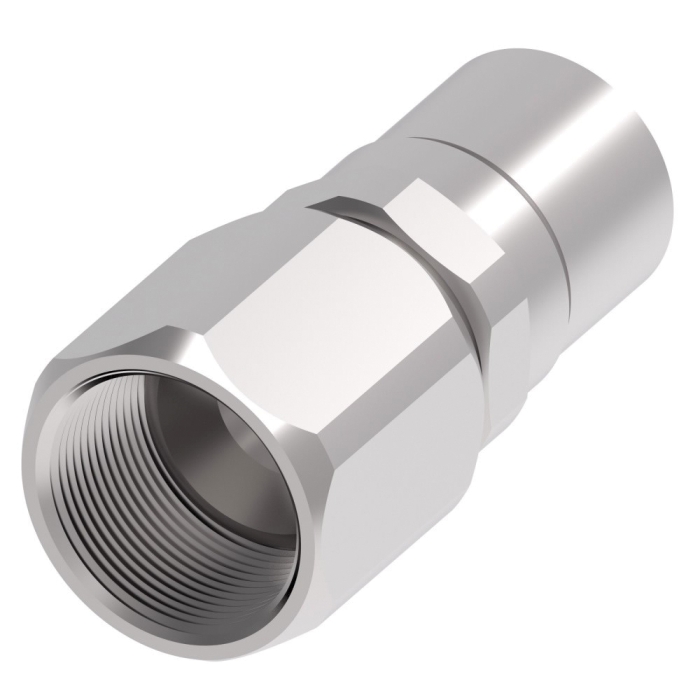

Everflex® Everswage Stainless Steel Female 37 deg JIC Swivel Swage Straight Hose Fitting

Everflex® Everswage Swage Straight Hose Fitting, Hose X 37 deg JIC Swivel, Stainless Steel

  • Add to cart
    Add To Favorites
    • pin-int

    Everflex® Everswage Swage Straight Hose Fitting, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 3/16 in, Hose Dash Size: 04, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 0.5 x 0.562 in, Cut-Off Factor: 0.9 in, Material Construction: Stainless Steel, For Use With: STW, SCTW, B, M, S, and SC Series Everflex® PTFE Hoses, Dimensions: 1.5 in L x 0.562 in W x 0.64 in H

    Connection Size 1      :      3/16 in
    Connection Size 2      :      1/4 in
    Connection Type      :      Hose~JIC Female Swivel
    Connection Type 1      :      Hose
    Connection Type 2      :      37 deg JIC Swivel
    Cut-Off Factor      :      0.9 in
    Dimensions      :      1.5 in L x 0.562 in W x 0.64 in H
    Fitting Type      :      Straight Hose Fitting
    For Use With      :      STW, SCTW, B, M, S, and SC Series Everflex® PTFE Hoses
    Gender 2      :      Female
    Hex Size      :      0.5 x 0.562 in
    Hose Dash Size      :      03
    Material      :      Stainless Steel
    Material Construction      :      Stainless Steel
    Shape      :      Straight
    Sub Brand      :      Everswage

    The Eaton Everswage fittings are permanently attached to smooth bore Teflon hose using a swaging process. Multiple configurations are available as well as both components and complete fitting assemblies.

    • Mix and match components for optimum inventory
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Everflex_S-1305_CAT.pdf
