Everflex® S-3 S-3

Everflex® S-3

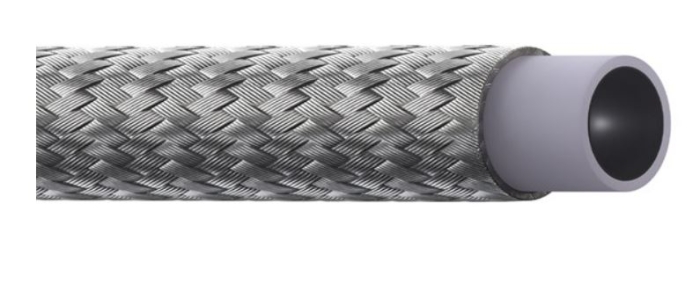

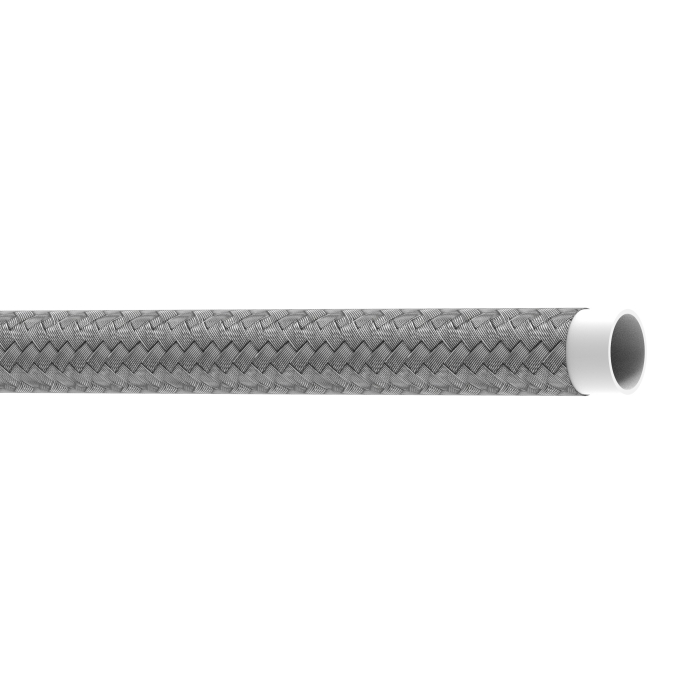

Everflex® S Series PTFE Non-Dissipating Smooth Bore Braided Hose, 0.13 in, 3500 psi

pin-int

Everflex® Non-Dissipating Smooth Bore Braided Hose, Series: S, Nominal Size: 0.13 in, Dash Size: 03, 0.27 in OD, 0.13 in ID, 0.04 in Thick Wall, 3500 psi, SAE Rating: SAE 100R14A, Material Construction: PTFE, 304 Stainless Steel Cover, Construction: Non-Conductive PTFE Inner Tube, One or Two Layers of Stainless Steel Braid, 1 in Bend Radius, Resistance Properties: Premium Abrasion, -65 deg F Low, 450 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      1 in
Construction      :      Non-Conductive PTFE Inner Tube, One or Two Layers of Stainless Steel Braid
Cover Material      :      304 Stainless Steel
Dash Size      :      03
Inside Diameter      :      0.13 in
Material      :      PTFE
Material Construction      :      PTFE
Nominal Size      :      0.13 in
Outside Diameter      :      0.27 in
Pressure Rating      :      3500 psi
Product Type      :      Braided Hose
Resistance Properties      :      Premium Abrasion
SAE Rating      :      SAE 100R14A
Series      :      S
Temperature High      :      450 deg F
Temperature Low      :      -65 deg F
Wall Thickness      :      0.04 in

Applications: Steam, compressor discharge and chemical transfer

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_37AL-06-2-250BX_CAT.pdf
