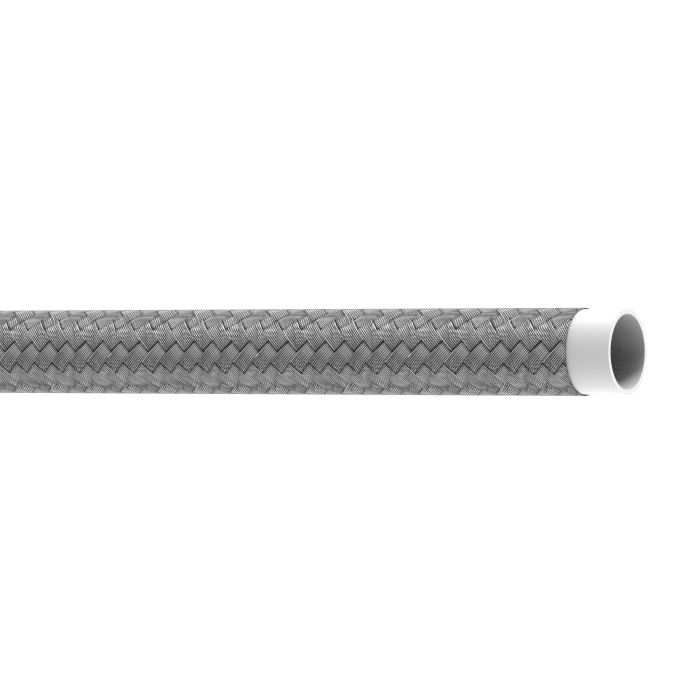

Everflex® S-TW PTFE Non-Dissipating Smooth Bore Braided Hose

The Everflex® S-TW Series Smooth Bore Braided Hose is designed for high-temperature and chemically demanding applications. Constructed with a PTFE tube reinforced by a 304 or 316 stainless steel braid, this hose offers excellent durability and flexibility. Its 0.030-inch minimum wall thickness ensures reliability, while its chemically inert DuPont T-62 resin, used in aerospace applications, provides superior resistance to high temperatures and aggressive chemicals. With a temperature range of -65°F to 450°F and a working pressure of up to 3,,000 psi, this hose is ideal for high-temperature hydraulics, hot air, steam, and compressor systems.

• ARGPN: S-10TW
• • Nominal Size:
    • 1/4 in
      Nominal Size
      1/4 in
    • 5/8 in
      Nominal Size
      5/8 in
    • 1/2 in
      Nominal Size
      1/2 in
    • 13/32 in
      Nominal Size
      13/32 in
    • 7/8 in
      Nominal Size
      7/8 in
    • 3/16 in
      Nominal Size
      3/16 in
    • 0.31 in
      Nominal Size
      0.31 in
    • 3/4 in
      Nominal Size
      3/4 in
    • 3/8 in
      Nominal Size
      3/8 in
    • 1 in
      Nominal Size
      1 in
  • Inside Diameter:
    • 1/4 in
      Inside Diameter
      1/4 in
    • 0.62 in
      Inside Diameter
      0.62 in
    • 1/2 in
      Inside Diameter
      1/2 in
    • 0.4 in
      Inside Diameter
      0.4 in
    • 0.87 in
      Inside Diameter
      0.87 in
    • 0.18 in
      Inside Diameter
      0.18 in
    • 0.31 in
      Inside Diameter
      0.31 in
    • 3/4 in
      Inside Diameter
      3/4 in
    • 0.37 in
      Inside Diameter
      0.37 in
    • 1 in
      Inside Diameter
      1 in
  • Length:
    • 5 - 500 ft
      Length
      5 - 500 ft
    • 5 - 600 ft
      Length
      5 - 600 ft
    • 12 in
      Length
      12 in
    • 5 - 300 ft
      Length
      5 - 300 ft
    • 5 - 400 ft
      Length
      5 - 400 ft
    • 5 - 700 ft
      Length
      5 - 700 ft
    • 5 - 150 ft
      Length
      5 - 150 ft
