Fill-Rite® FR700V FR700V

Fill-Rite® FR700V

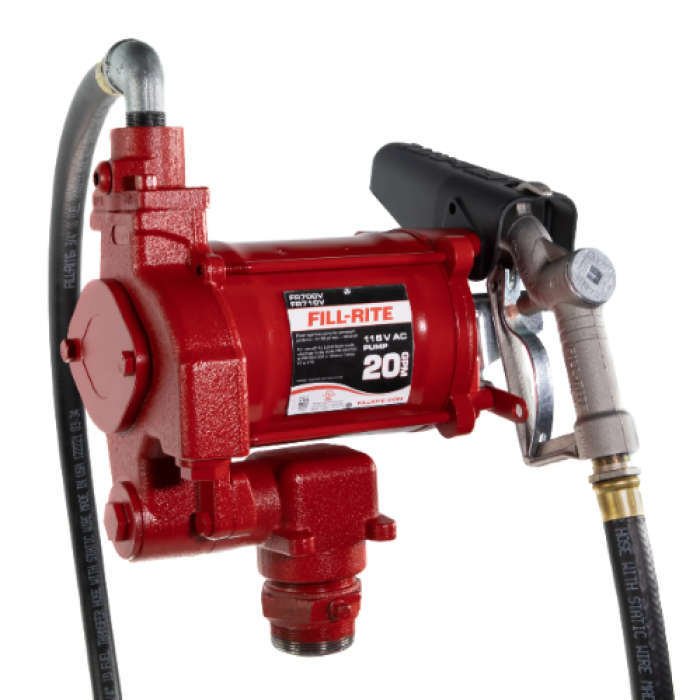

Fill-Rite® FR Series Cast Iron Pump with Manual Nozzle, 1-1/4 in NPT, 3/4 in NPT, 18 gpm

  • Manufacturer: Fill-Rite
  • Brand: Fill-Rite®
  • ARGPN: FR700V
  • MPN: FR700V
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Fill-Rite factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Fill-Rite® Pump with Manual Nozzle, Series: FR, Connection Size 1: 1-1/4 in NPT, Connection Size 2: 3/4 in NPT, 18 gpm, Material Construction: Cast Iron, 115 VDC, 5.5 A, Includes: 3/4 in x 12 ft Hose with Static Wire, 3/4 in Manual Nozzle

Amperage Rating      :      5.5 A
Connection Size 1      :      1-1/4 in NPT
Connection Size 2      :      3/4 in NPT
Flow Rate      :      18 gpm
Includes      :      3/4 in x 12 ft Hose with Static Wire, 3/4 in Manual Nozzle
Material      :      Malleable Iron
Material Construction      :      Cast Iron
Product Type      :      Pump
Series      :      FR
Voltage Rating      :      115 VDC
  • 2 in threaded base for tank mounting
  • Iron rotor with bronze rotary vanes
  • Self-priming
  • Manual nozzle
  • 30 min duty-cycle
  • Buna-N seal material
  • Anti-siphon valve
  • 53.13 maximum head
  • 23 by pass pressure rating
  • 12 in-Hg dry vacuum
  • Not for aviation use

Applications: For gasoline, diesel, biodiesel up to B20, E15, kerosene and mineral spirits

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/FILL-RITE_FR700V_CAT.pdf
  • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/FILL-RITE_FR700V_II.pdf
  • Warranty https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/TTS_LIFETIME_WARRANTY_DOC_7-15-20.pdf
