Gates® 4176-0009 76W113

Gates® 4176-0009

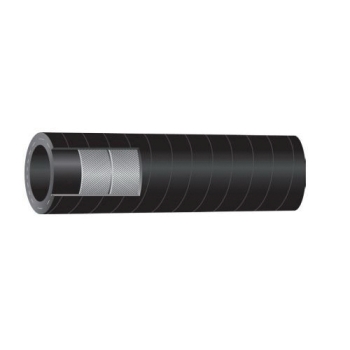

Gates® 76W Black EPDM Thick Wall Engine Coolant Hose, 1-1/8 in, 3 ft L, 175 psi

  • Manufacturer: Gates Corp
  • Brand: Gates®
  • ARGPN: 76W113
  • MPN: 4176-0009
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Gates Corp factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Gates® Thick Wall Engine Coolant Hose, Series: 76W, Nominal Size: 1-1/8 in, 1.65 in OD, 1.12 in ID, 0.25+/-0.025 in Thick Wall, 3 ft Length, 175 psi, Material Construction: EPDM, EPDM Cover, Black, 8 in Bend Radius, Resistance Properties: Abrasion, Heat, Ozone, -40 deg F Low, 257 deg F High

Bend Radius      :      8 in
Color      :      Black
Cover Material      :      EPDM
Inside Diameter      :      1.12 in
Length      :      3 ft
Material      :      EPDM
Material Construction      :      EPDM
Nominal Size      :      1-1/8 in
Outside Diameter      :      1.65 in
Pressure Rating      :      175 psi
Product Type      :      Coolant Hose
Resistance Properties      :      Abrasion, Heat, Ozone
Series      :      76W
Temperature High      :      257 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      0.25+/-0.025 in
  • Synthetic fabric reinforcement plies, EPDM cover with wrapped appearance
  • Hose bead fitting fastened with hose clamps

Applications: For air, water, radiator and heater applications

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_4176-0009_CAT.pdf
