Gates® 4651-1398 12EFG6K

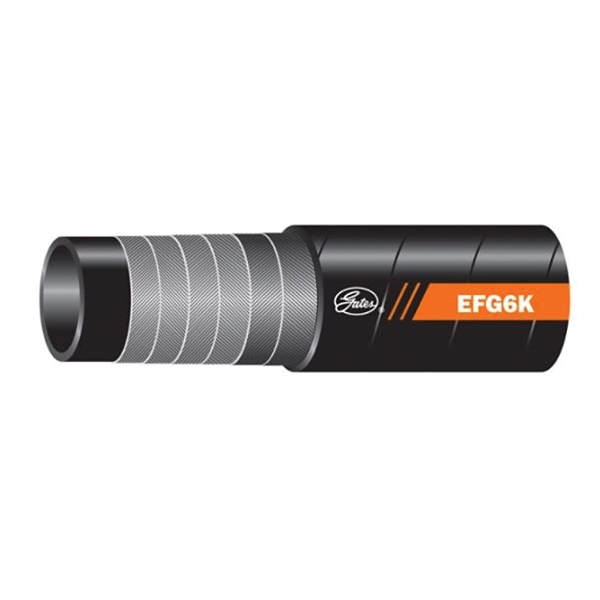

Gates® EFG6K Black Synthetic Rubber Hydraulic Spiral Hose

Gates® EFG6K Black Synthetic Rubber Hydraulic Spiral Hose, 3/4 in, 6000 psi

pin-int

Gates® Hydraulic Spiral Hose, Series: EFG6K, Nominal Size: 3/4 in, Dash Size: 12, 1.24 in OD, 3/4 in ID, 6000 psi, SAE Rating: SAE 100R15, Material Construction: Synthetic Rubber, Type A Polychloroprene Cover, Construction: 4-Alternating Layers of Spiraled, High-Tensile Steel Wire, Black, 4.7 in Bend Radius, Resistance Properties: Oil, -40 deg F Low, 250 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      4.7 in
Color      :      Black
Construction      :      4-Alternating Layers of Spiraled, High-Tensile Steel Wire
Cover Material      :      Type A Polychloroprene
Dash Size      :      12
Inside Diameter      :      3/4 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      3/4 in
Outside Diameter      :      1.24 in
Pressure Rating      :      6000 psi
Product Type      :      Hydraulic Spiral Hose
Resistance Properties      :      Oil
SAE Rating      :      SAE 100R15
Series      :      EFG6K
Temperature High      :      250 deg F
Temperature Low      :      -40 deg F
  • EFG6K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • Superior flex impulse performance tested to 1,000,000 impulse cycles at 50% of SAE 100R15 bend radii
  • -6 to -20 validated with GlobalSpiral™, -24, -32 with GlobalSpiral™ maximum
  • Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure
  • EFG6K MegaSpiral™ is rated at 1/2 bend radius of SAE 100R15
  • Meets flame-resistant acceptance designation MSHA 2G
  • 6000 psi constant pressure for all ID's
  • Black, oil-resistant, synthetic rubber (polychloroprene - Type A) with color-coded lay line cover

Applications: For extremely high pressure and high impulse applications such as hydrostatic transmissions
