Gates® 90032146

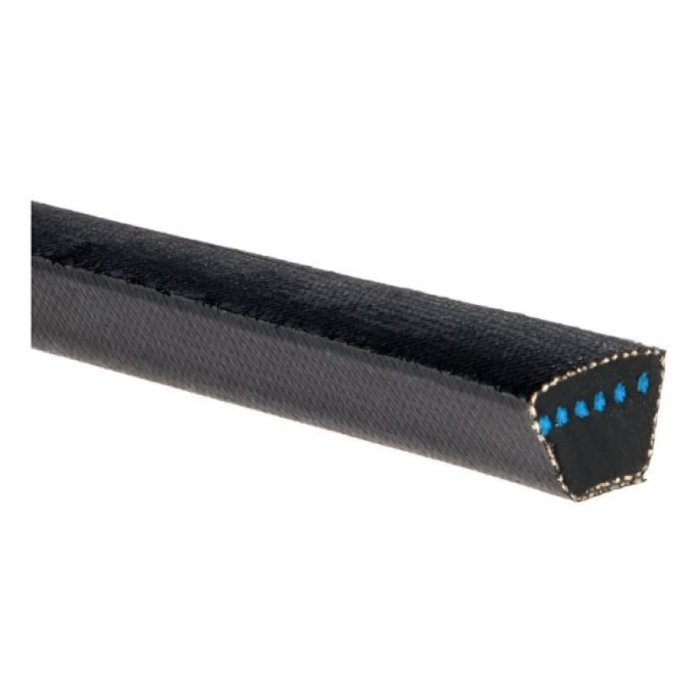

Gates® Hi-Power® V80® 9003 Banded Heavy-Duty V-Belt, 149.1 in, B Section, 0.69 in W, 0.44 in Thick

Manufacturer: Gates Corp
Brand: Gates®
ARGPN: B-146

MPN: 90032146

Available for Pickup - Anchorage, AK Branch: Click here
Available for Shipping:
Available for Gates Corp factory-direct delivery:
Sold As: 10/PK
Add to cart
Add To Favorites

Description
Specs
Features
Documents

Gates® Hi-Power®, V80® Banded Heavy-Duty V-Belt, Series: 9003, V-Belt Section: B, Outer Circumference: 149.1 in, Construction: Wrapped, 0.69 in Width, 0.44 in Thickness, Material Construction: Gates Proprietary Compound, -22 to 140 deg F

Construction	:	Wrapped
Material Construction	:	Gates Proprietary Compound
Outer Circumference	:	149.1 in
Product Type	:	V-Belt
Series	:	9003
Sub Brand	:	Hi-Power®, V80®
Temperature Rating	:	-22 to 140 deg F
Thickness	:	0.44 in
V-Belt Section	:	B
Width	:	0.69 in

The wrapped classical section Hi-Power® V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power® belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.

Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear
The vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads
The Flex-Weave® oil- and heat-resistant cover protects the belt core from the toughest environments
Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
Gates curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear and increased belt life
The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
Static conductive (ISO 1813) and can as such be used in the conditions described in the Directive 2014/34/EU- ATEX
Belt edge is machined for even sheave groove contact, resulting in smoother running and less slip and wear
Meets Gates UNISET tolerances, they can be installed without matching
Meets RMA oil and heat-resistant standards and static conductivity requirements
High-quality rubber compound protects the belt against heat, ozone and sunlight
The belt will not catch fire from heat build-up, even with severe slippage
Long belt life reducing replacement and maintenance costs
Excellent performance/cost ratio
Reliability and efficiency

Applications: Suitable for all industrial applications, including V-flat drives

Safety Notes: Gates Hi-Power® belts are available in A, B, C, D and E cross sections.
