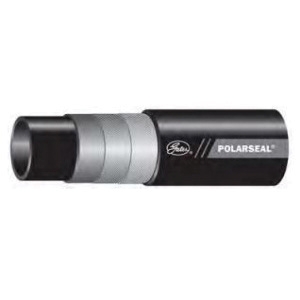

Gates® Polarseal® Black Type A Chloroprene Refrigerant Hose
The Gates® Polarseal® Refrigerant Hose is constructed from synthetic rubber and reinforced with two layers of spiral polyester. It can handle pressures up to 500 psi and temperatures ranging from -22°F to 257°F. This hose is designed for liquid and gaseous R134A and R12 refrigerants in automotive and industrial air conditioning systems. It meets SAE J3062 standards for manufacturing and requires compliance with SAE J2064 for assemblies, ensuring minimized permeation of R134a refrigerant.
-
ARGPN: 8AC134A
-
-
Nominal Size:
-
Inside Diameter:
-
Nominal Size:
Gates® Polarseal® Refrigerant Hose, Nominal Size: 13/32 in, Dash Size: 08, 0.91 in OD, 13/32 in ID, 500 psi, SAE Rating: SAE J3062/J51, Material Construction: Synthetic Rubber, EPDM Cover, Construction: 2-Layers of Spiral Polyester, Black, 3 in Bend Radius, Resistance Properties: Abrasion, -22 deg F Low, 257 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 3 in |
| Color | : | Black |
| Construction | : | 2-Layers of Spiral Polyester |
| Cover Material | : | EPDM |
| Dash Size | : | 08 |
| Inside Diameter | : | 13/32 in |
| Material | : | Nitrile |
| Material Construction | : | Synthetic Rubber |
| Nominal Size | : | 13/32 in |
| Outside Diameter | : | 0.91 in |
| Pressure Rating | : | 500 psi |
| Product Type | : | Refrigerant Hose |
| Resistance Properties | : | Abrasion |
| SAE Rating | : | SAE J3062/J51 |
| Sub Brand | : | Polarseal® |
| Temperature High | : | 257 deg F |
| Temperature Low | : | -22 deg F |
Polarseal® I hose builds on our decades of innovation in material science. Polarseal® I hose is specially constructed to handle environmentally-sensitive liquid and gaseous refrigerant applications. Synthetic EPDM cover construction, a nylon internal barrier inside a chloroprene rubber tube and spiraled polyester reinforcement create a highly durable, low permeation refrigerant-specific fluid power solution for a wide range of automotive and industrial applications. Designed to minimize permeation of R134a and R12 refrigerant.
- 4:1 design factor
Applications: For tractors, construction trucks, mobile and stationary refrigeration units
