Green Pin BigMouth® ASGHMB38

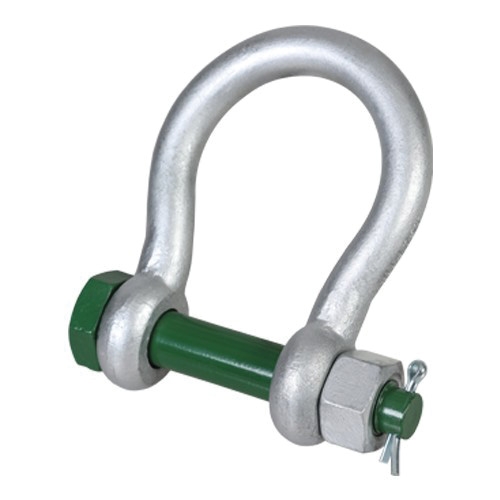

Green Pin BigMouth® G-4263 Hot-Dipped Galvanized Grade 8 Alloy Steel Wide Mouth Safety Bow Shackle, 1-1/2 in, 16 ton
- Manufacturer: Van Beest USA
- Brand: Green Pin BigMouth®
- ARGPN: ASGHMB38
- MPN: ASGHMB38
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for Van Beest USA factory-direct delivery:
-
Green Pin BigMouth® Wide Mouth Safety Bow Shackle, Series: G-4263, Load Capacity: 16 ton, Size: 1-1/2 in, 1-5/8 in Pin Diameter, Inside Length: 8-1/2 in, Inside Width: 4-3/16 in, Eye Outer Size: 3-15/16 in, Material Construction: Grade 8 Alloy Steel, Finish: Hot-Dipped Galvanized, 12-9/16 in Length, 9-1/4 in Width, For Use With: One-Leg and Multi-Leg Systems
| Eye Outer Size | : | 3-15/16 in |
| Finish | : | Hot-Dipped Galvanized |
| For Use With | : | One-Leg and Multi-Leg Systems |
| Inside Length | : | 8-1/2 in |
| Inside Width | : | 4-3/16 in |
| Length | : | 12-9/16 in |
| Load Capacity | : | 16 ton |
| Material | : | Steel |
| Material Construction | : | Grade 8 Alloy Steel |
| Pin Diameter | : | 1-5/8 in |
| Product Type | : | Bow Shackle |
| Series | : | G-4263 |
| Size | : | 1-1/2 in |
| Width | : | 9-1/4 in |
The Green Pin BigMouth® bow shackle BN is a grade 8 shackle with a safety bolt and a wider shackle mouth. The wider shackle mouth enables you to connect the shackle to a connecting point (e.g. a pad eye) which is wider than usual. The shackle also offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin. Long-term durability is assured due to the galvanization of the Green Pin BigMouth bow shackle BN. Of course, the Green Pin BigMouth bow shackle BN conforms to a range of certifications.
- Perfect for use with wide connecting points due to wide shackle mouth
- Galvanization assures long-term durability
Applications: For towing operations
