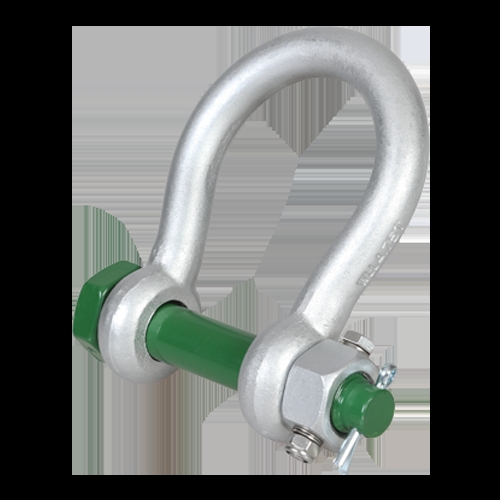

Green Pin BigMouth® G-4263 Hot Dipped Galvanized Grade 8 Alloy Steel Wide Mouth Safety Bow Shackle

Green Pin BigMouth® Wide Mouth Safety Bow Shackle, Series: G-4263, Load Capacity: 8.5 ton, Size: 1-1/8 in, 1-1/4 in Pin Diameter, Screw Pin, Inside Length: 5-13/16 in, Inside Width: 3-7/32 in, Eye Outer Size: 2-19/32 in, Material Construction: Grade 8 Alloy Steel Bow, Finish: Hot-Dipped Galvanized, 8-27/32 in Length, 6-23/32 in Width, For Use With: Wide Connecting Points Due to Wide Shackle Mouth

The Green Pin BigMouth® bow shackle fn is a grade 8 shackle with a safety bolt, fixed nut and a wider shackle mouth. The wider shackle mouth enables you to connect the shackle to a connecting point (e.g. Pad eye) which is wider than usual. The shackle is the perfect choice when the load is dynamic or exposed to extreme vibrations because of its triple safety (split pin, safety bolt and fixed nut). The fixed nut of the Green Pin BigMouth® bow shackle fn is drilled through both the shackle nut and pin and is firmly attached to the pin head with bolts and Nord-Lock® washers. Long-term durability is assured due to the galvanization of the green pin BigMouth® bow shackle fn. The shackle conforms to a range of certifications. The Green Pin BigMouth® bow shackle fn is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 4.75 up to 75 ton.

• Triple safety (split pin, safety bolt, fixed nut)
• Top choice when the load is dynamic or exposed to extreme vibrations
• Galvanization assures long term durability
• Superior stock availability of 99%
• 6:1 safety factor

• Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Green Pin_GPGHBB65_CAT.pdf
