Green Pin® GPGHBB45

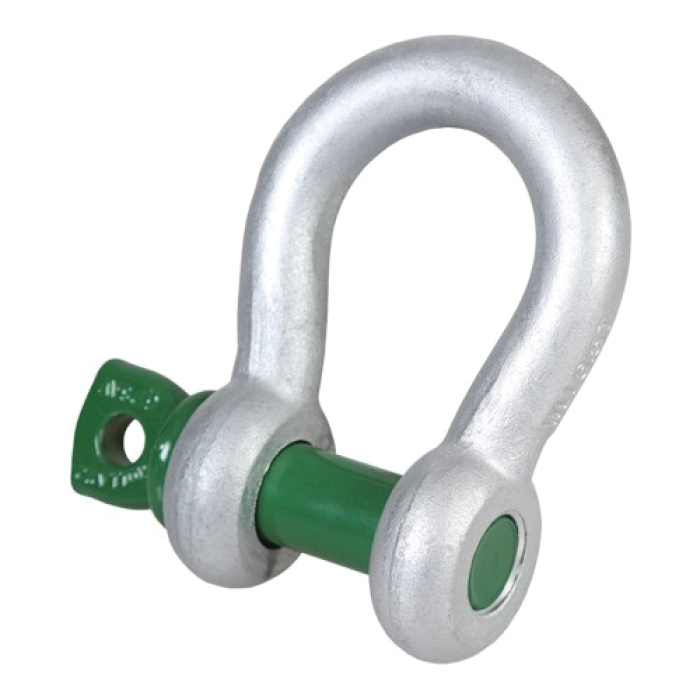

Green Pin® G-4161 Hot-Dipped Galvanized Grade 6 High Tensile Steel Screw Pin Anchor Bow Shackle, 1-3/4 in, 25 ton

Manufacturer: Van Beest USA
Brand: Green Pin®
ARGPN: GPGHBB45

MPN: GPGHBB45

Available for Pickup - Anchorage, AK Branch: Click here
Available for Shipping:
Available for Van Beest USA factory-direct delivery:
Add to cart
Add To Favorites

Description
Specs
Features
Documents

Green Pin® Screw Pin Anchor Bow Shackle, Series: G-4161, Load Capacity: 25 ton, Size: 1-3/4 in, 2 in Pin Diameter, Screw Pin, Inside Length: 2-29/32 in, Inside Width: 7 in, Eye Outer Size: 4-1/16 in, Material Construction: Grade 6 High Tensile Steel, Finish: Hot-Dipped Galvanized, 11-13/16 in Length, 8-1/2 in Width

Eye Outer Size	:	4-1/16 in
Finish	:	Hot-Dipped Galvanized
Inside Length	:	2-29/32 in
Inside Width	:	7 in
Length	:	11-13/16 in
Load Capacity	:	25 ton
Material	:	Steel
Material Construction	:	Grade 6 High Tensile Steel
Pin Diameter	:	2 in
Pin Type	:	Screw
Product Type	:	Bow Shackle
Series	:	G-4161
Size	:	1-3/4 in
Width	:	8-1/2 in

The Green Pin® bow shackle sc is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently. The Green Pin® bow shackle sc can be used for both one-leg and multi-leg systems. Due to the galvanization of the shackle its long-term durability is assured. The shackle's design reduces the wear of (wire) rope as the screw thread is hidden in a chamber. Particularly important for use offshore, the Green Pin® bow shackle sc conforms to a wide range of certifications from class societies such as DNV GL. The shackle is available in a range with a working load limit from 0.33 up to 55 ton.
