Hansen™ and Gromelle™ 5100-S2-16B 5100-S2-16B

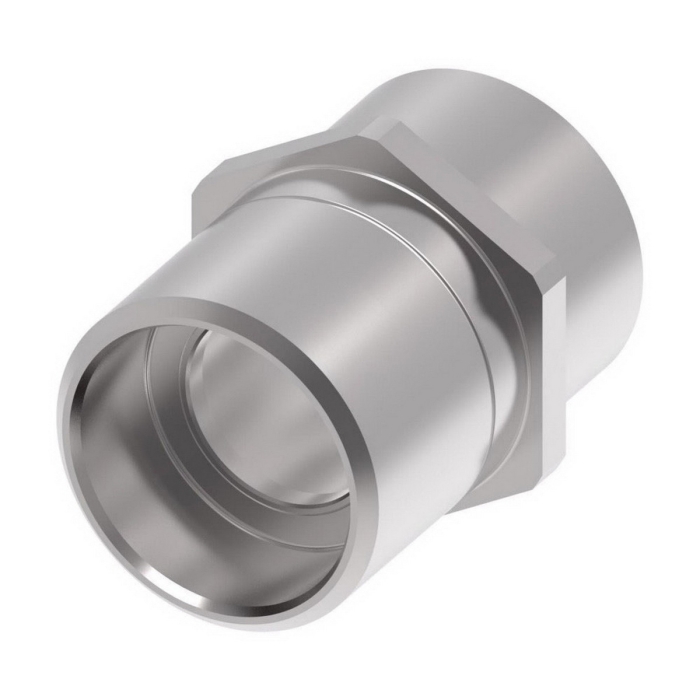

Hansen™ and Gromelle™ 5100 Plain Brass Male Quick Disconnect Thread-To-Connect Coupling

Hansen™ and Gromelle™ 5100 Thread-To-Connect Coupling, Quick Disconnect X NPT, Plain, Brass

  • Add to cart
    Add To Favorites
    • pin-int

    Hansen™ and Gromelle™ Thread-To-Connect Coupling, Series: 5100, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 39.6 in, 3000 psi, Material Construction: Brass, Finish: Plain, Dimensions: 3.55 in L x 1.74 in W

    Connection Size 1      :      1 in
    Connection Size 2      :      1 in
    Connection Type 1      :      Quick Disconnect
    Connection Type 2      :      NPT
    Dimensions      :      3.55 in L x 1.74 in W
    Finish      :      Plain
    Gender 1      :      Male
    Gender 2      :      Female
    Hex Size      :      39.6 in
    Material      :      Brass
    Material Construction      :      Brass
    Pressure Rating      :      3000 psi
    Series      :      5100
    Shape      :      Coupling
    Thread Size 2      :      1-11-1/2

    Eaton 5100 Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss. Thread together latch provides connect under pressure capability and vibration-resistance. The 5100 series is not rated for continuous hydraulic impulse applications. For hydraulic impulse applications, refer to the FD86 and FD96 series thread to connect product lines.

    • No fluid loss during connection/disconnection
    • Low air inclusion
    • Wing or hex configuration
    • Connect under pressure up to 500 psi
    • Valved with wing nut and flange
    • Tubular valve construction for virtually no fluid loss during disconnection, reduces environmental and worker safety hazards

    Applications: Hydraulics and fluid transfer, on-highway hydraulic wet lines, dump and refuse vehicles and bulk liquid transfer
