Hansen™ and Gromelle™ 5100-16B 5100-16B

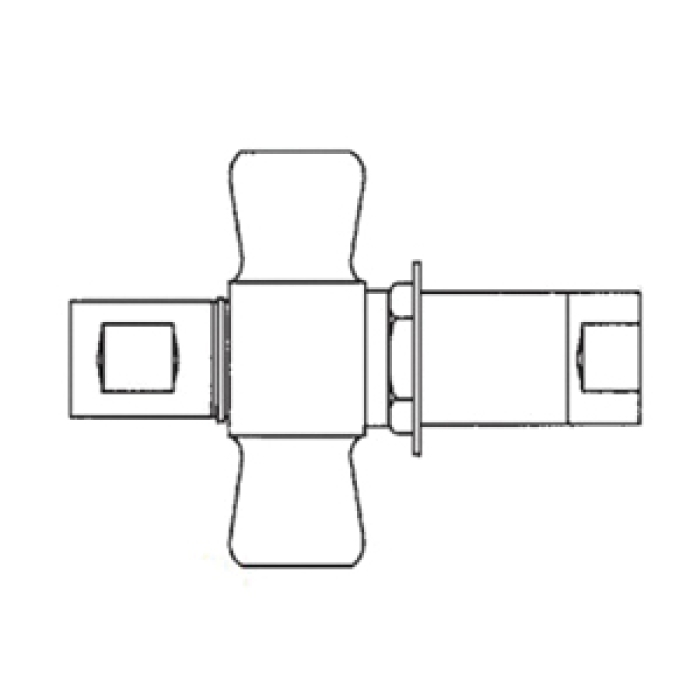

Hansen™ and Gromelle™ 5100 Plain Brass Thread-To-Connect Coupling with Wing Nut and Flange

Hansen™ and Gromelle™ 5100 Thread-To-Connect Coupling with Wing Nut and Flange, Quick Disconnect X NPT, Plain, Brass, 3000 psi

pin-int

Hansen™ and Gromelle™ Thread-To-Connect Coupling with Wing Nut and Flange, Series: 5100, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, 3000 psi, Material Construction: Brass, Finish: Plain, Dimensions: 5.89 in L

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPT
Dimensions      :      5.89 in L
Finish      :      Plain
Gender 1      :      Female
Gender 2      :      Female
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      3000 psi
Series      :      5100
Shape      :      Coupling
Thread Size 2      :      1-11-1/2

Eaton 5100 Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss. Thread together latch provides connect under pressure capability and vibration-resistance. The 5100 series is not-rated for continuous hydraulic impulse applications.

  • No fluid loss during connection/disconnection
  • Low air inclusion
  • Wing or hex configuration
  • Connect under pressure up to 500 psi
  • Valved with wing nut and flange
  • Tubular valve construction for virtually no fluid loss during disconnection, reduces environmental and worker safety hazards

Applications: Hydraulics and fluid transfer, on-highway hydraulic wet lines, dump and refuse vehicles and bulk liquid transfer

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Hansen and Gromelle_100006E_CAT.pdf
