Hansen™ and Gromelle™ 5110-S5-12B 5110-S5-12B

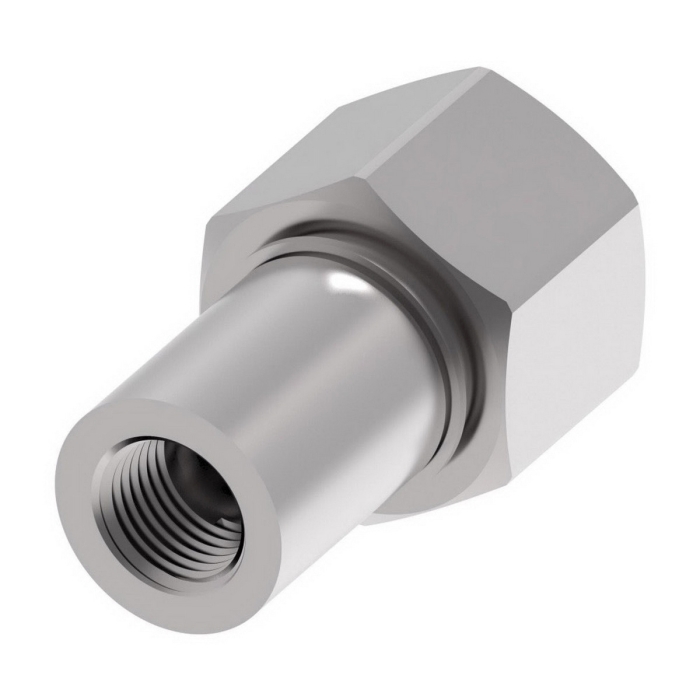

Hansen™ and Gromelle™ 5100 Zinc Trivalent-Plated Brass Coupling with 2-Way Valve

Hansen™ and Gromelle™ 5100 Coupling with 2-Way Valve, Quick Disconnect X NPT, Zinc Trivalent-Plated, Brass, 3000 psi

  • ARGPN: 5110-S5-12B loading
    • Connection Size 1:
    • Connection Size 2:
  • Add to cart
    Add To Favorites
    • pin-int

    Hansen™ and Gromelle™ Coupling with 2-Way Valve, Series: 5100, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 3/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1.16 x 1.75 in, 3000 psi, Material Construction: Brass, Finish: Zinc Trivalent-Plated, Dimensions: 3.07 in L x 1.98 in W, -40 to 250 deg F

    Connection Size 1      :      3/4 in
    Connection Size 2      :      3/4 in
    Connection Type 1      :      Quick Disconnect
    Connection Type 2      :      NPT
    Dimensions      :      3.07 in L x 1.98 in W
    Finish      :      Zinc Trivalent-Plated
    Gender 1      :      Female
    Gender 2      :      Female
    Hex Size      :      1.16 x 1.75 in
    Material      :      Brass
    Material Construction      :      Brass
    Pressure Rating      :      3000 psi
    Series      :      5100
    Shape      :      Coupling
    Temperature Rating      :      -40 to 250 deg F
    Thread Size 2      :      3/4-14

    Eaton's 5100 Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss. Thread together latch provides connect under pressure capability and vibration resistance. The 5100 series is not rated for continuous hydraulic impulse applications. For hydraulic impulse applications, refer to the FD86 and FD96 series thread to connect product lines.

    • Tubular valve construction for virtually no fluid loss during disconnection, reduces environmental and worker safety hazards
    • Low air inclusion during connection maintains system performance
    • Connect against pressure capability allows connecting of halves even when pressurized up to 500 psi
    • Buna-N seal material

    Applications: Hydraulics and fluid transfer, on-highway hydraulic wet lines, dump and refuse vehicles and bulk liquid transfer

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Hansen and Gromelle_100506_CAT.pdf
