Hansen™ and Gromelle™ FD35-1001-06-06 FD35-1001-06-06

Hansen™ and Gromelle™ FD35-1001-06-06

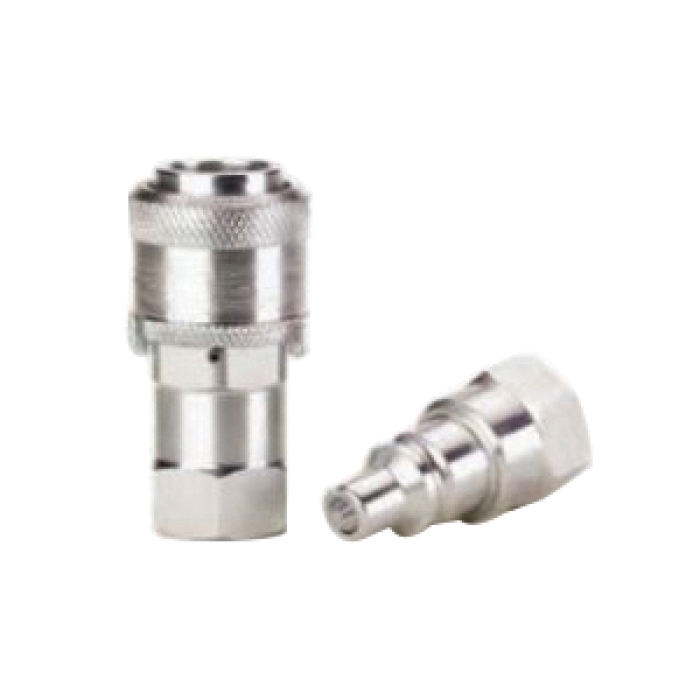

Hansen™ and Gromelle™ FD35 Zinc Trivalent-Plated Carbon Steel Straight Ball Latch Coupling with 2-Way Valve, 3/8 in Female Quick Disconnect x 3/8 in FNPT

  • Manufacturer: Danfoss Power Solutions
  • Brand: Hansen™ and Gromelle™
  • ARGPN: FD35-1001-06-06
  • MPN: FD35-1001-06-06
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Hansen™ and Gromelle™ Straight Ball Latch Coupling with 2-Way Valve, Series: FD35, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 3/8 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 0.94 in, 10000 psi, Material Construction: Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 2.56 in L x 1.27 in W x 1.27 in H, -30 to 250 deg F

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPT
Dimensions      :      2.56 in L x 1.27 in W x 1.27 in H
Finish      :      Zinc Trivalent-Plated
Gender 1      :      Female
Gender 2      :      Female
Hex Size      :      0.94 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      10000 psi
Series      :      FD35
Shape      :      Coupling
Temperature Rating      :      -30 to 250 deg F
Thread Size 2      :      3/8-18

Eaton FD35 Series ball latch has a greater surface contact area for long surface life in rugged high pressure applications. The maximum operating pressure is 10000 psi.

  • Safety sleeve lock prevents accidental disconnection
  • Heavy-duty back-up ring prevents O-ring extrusion
  • Heat treated and plated steel for greater wear and corrosion resistance
  • Self-sealing poppet valve design provides excellent high and low pressure sealing

Applications: Hydraulic tool, hydraulic ram and work loading

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Hansen and Gromelle_FD90-1012-02-04_CAT.pdf
