Hansen™ and Gromelle™ FD49-1002-08-06 FD49-1002-08-06

Hansen™ and Gromelle™ FD49-1002-08-06

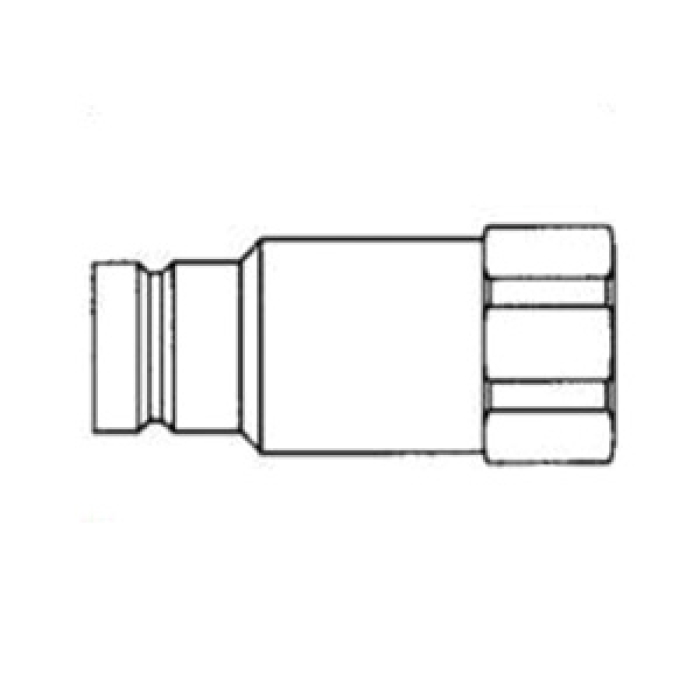

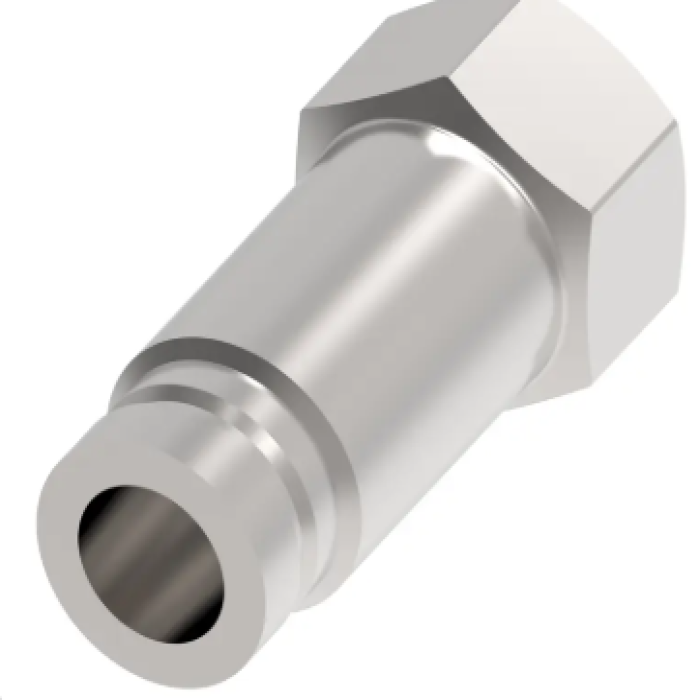

Hansen™ and Gromelle™ FD49 Zinc Trivalent-Plated Carbon Steel Valved Coupling, 3/8 in Male Quick Disconnect x 1/2 in FNPT

  • Manufacturer: Danfoss Power Solutions
  • Brand: Hansen™ and Gromelle™
  • ARGPN: FD49-1002-08-06
  • MPN: FD49-1002-08-06
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Hansen™ and Gromelle™ Valved Coupling, Series: FD49, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 3/8 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1.06 in, 3000 psi, Material Construction: Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 2-3/4 in L

Connection Size 1      :      3/8 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPT
Dimensions      :      2-3/4 in L
Finish      :      Zinc Trivalent-Plated
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      1.06 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      3000 psi
Series      :      FD49
Shape      :      Coupling
Thread Size 2      :      1/2-14

Eaton FD49 Series meets NFPA standard T3.20.15 and was developed in conjunction with HTMA (hydraulic tool manufacturer association). Eaton Twin-Guard™ sealing system prevents weepage at low pressures and allows connection and disconnection against pressure up to 500 psi.

  • Dual flush face valving for minimal fluid loss and air inclusion
  • Tubular valve and sleeve construction for high-fluid flow with low pressure drop
  • Push-to-connect latching for one hand operation
  • Sleeve lock safety mechanism

Applications: Hydraulic tool (HTMA interchange), hydraulic and fluid transfer

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Hansen and Gromelle_FD90-1012-02-04_CAT.pdf
