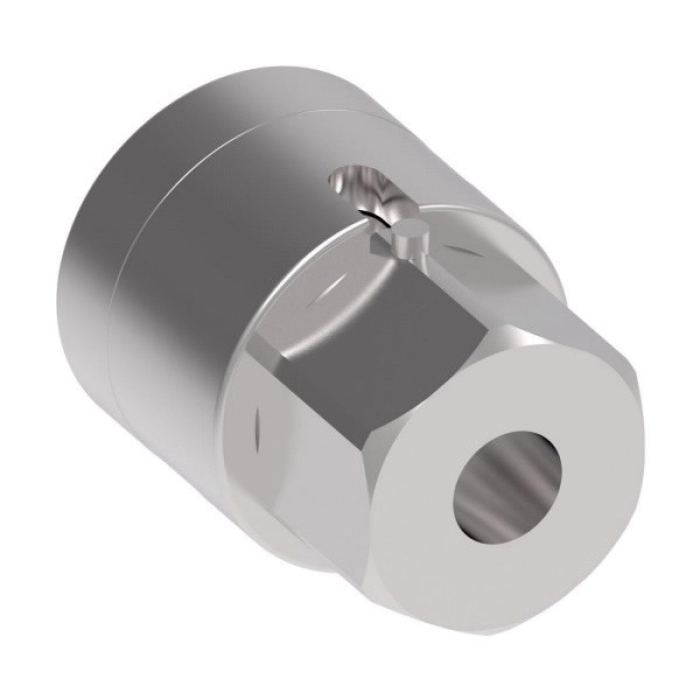

Hansen™ and Gromelle™ FD69 Zinc Trivalent-Plated Carbon Steel Female Quick Disconnect x FNPT Water-Blast Ball Lock Coupling with Straight Thru Valve
Hansen™ and Gromelle™ FD69 Water-Blast Ball Lock Coupling with Straight Thru Valve, Quick Disconnect X NPT, Zinc Trivalent-Plated, Carbon Steel, 10000 psi
-
ARGPN: FD69-1001-08-08
-
-
Connection Size 2:
-
Connection Size 2:
Hansen™ and Gromelle™ Water-Blast Ball Lock Coupling with Straight Thru Valve, Series: FD69, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/2 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-1/4 in, 10000 psi, Material Construction: Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 2.13 in L x 1.62 in W x 1.62 in H, -40 to 250 deg F
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Quick Disconnect |
| Connection Type 2 | : | NPT |
| Dimensions | : | 2.13 in L x 1.62 in W x 1.62 in H |
| Finish | : | Zinc Trivalent-Plated |
| Gender 1 | : | Female |
| Gender 2 | : | Female |
| Hex Size | : | 1-1/4 in |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Pressure Rating | : | 10000 psi |
| Series | : | FD69 |
| Shape | : | Coupling |
| Temperature Rating | : | -40 to 250 deg F |
| Thread Size 2 | : | 1/2-14 |
Eaton FD69 Series design has a greater surface contact area for long service life in rugged high pressure and water blast applications. The maximum operating pressure is 10000 psi with 40000 psi minimum burst pressure.
- Safety sleeve lock prevents accidental disconnection
- Smooth bore straight through design for high-flow fluid requirements
- Heavy-duty back-up ring prevents O-ring extrusion
Applications: High pressure water blast, bridge/concrete repair, paint stripping and shipyards
