Hansen™ and Gromelle™ FD90-1021-02-04

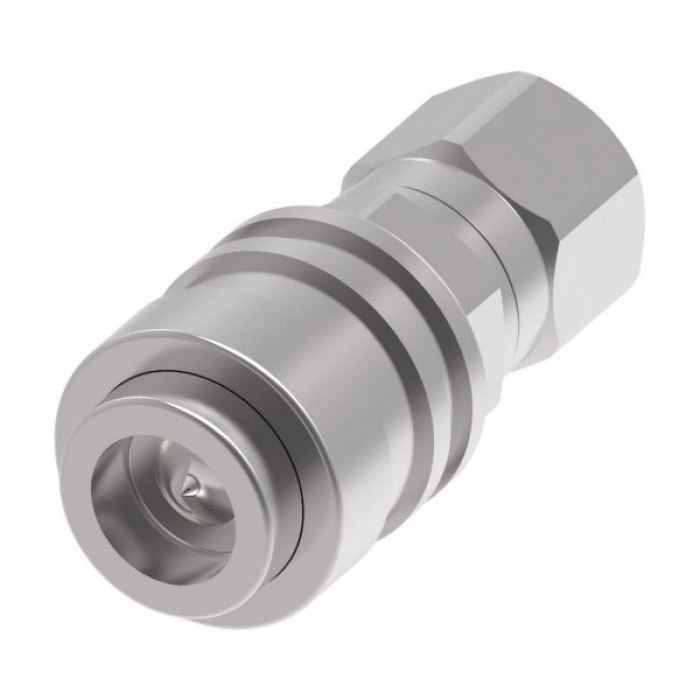

Hansen™ and Gromelle™ FD90 Zinc Trivalent-Plated Carbon Steel Straight Ball Lock Coupling with 2-Way Valve, 1/4 in Female Quick Disconnect x 1/8 in FNPT

  • Manufacturer: Danfoss Power Solutions
  • Brand: Hansen™ and Gromelle™
  • ARGPN: FD90-1021-02-04
  • MPN: FD90-1021-02-04
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Hansen™ and Gromelle™ Straight Ball Lock Coupling with 2-Way Valve, Series: FD90, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/8 in, Thread Size 2: 1/8-27, Hex Size: 3/4 in, 7000 psi, Material Construction: Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 1.95 in L x 0.75 in W x 0.75 in H, Dimension Standards: SAE J1502, -4 to 212 deg F

Connection Size 1      :      1/4 in
Connection Size 2      :      1/8 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPT
Dimension Standards      :      SAE J1502
Dimensions      :      1.95 in L x 0.75 in W x 0.75 in H
Finish      :      Zinc Trivalent-Plated
Gender 1      :      Female
Gender 2      :      Female
Hex Size      :      3/4 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      7000 psi
Series      :      FD90
Shape      :      Coupling
Temperature Rating      :      -4 to 212 deg F
Thread Size 2      :      1/8-27

Eaton FD90 Series diagnostic coupling is designed to connect and disconnect pressure gauges to hydraulic systems, eliminating the need for permanent gauges. The maximum operating pressure is 7000 psi.

  • Automatic sleeve for one hand push-to-connect operation
  • Flush face valving provides minimal fluid loss and low air inclusion
  • Self-sealing valve design allows connection and disconnection at 500 psi
  • Broad range of end configurations for system accessibility
  • Diagnostic pressure testing for hydraulic systems
  • Sleeve lock safety mechanism
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Hansen and Gromelle_FD90-1012-02-04_CAT.pdf
