Hansen™ and Gromelle™ FD86-1001-16-16 FD86-1001-16-16

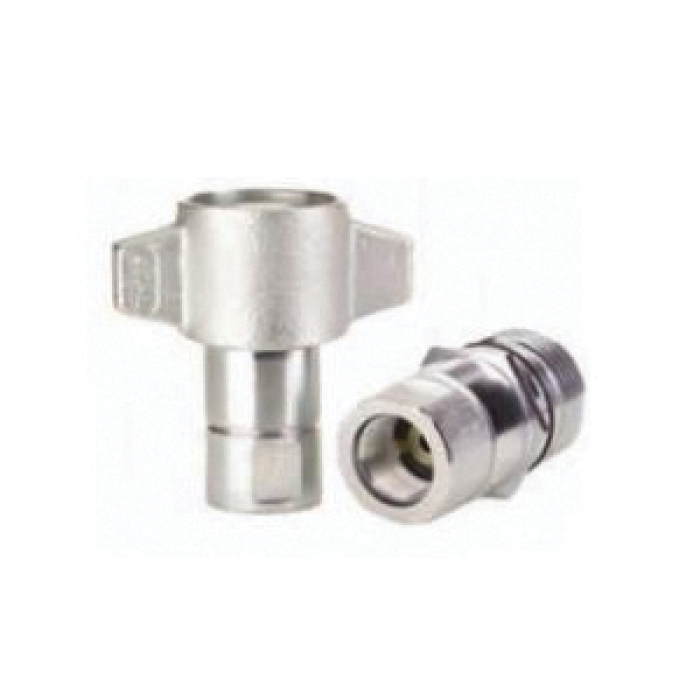

Hansen™ and Gromelle™ FD86 Zinc Trivalent-Plated Carbon Steel Female Quick Disconnect x FNPT High Impulse Thread-To-Connect Straight Coupling with 2-Way Valve

Hansen™ and Gromelle™ FD86 High Impulse Thread-To-Connect Straight Coupling with 2-Way Valve, Quick Disconnect X NPT, Zinc Trivalent-Plated, Carbon Steel, 5000 psi

  • ARGPN: FD86-1001-16-16 loading
    • Connection Size 1:
    • Connection Size 2:
  • Add to cart
    Add To Favorites
    • pin-int

    Hansen™ and Gromelle™ High Impulse Thread-To-Connect Straight Coupling with 2-Way Valve, Series: FD86, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, 5000 psi, Material Construction: Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 4.98 in L x 4.5 in W x 4.5 in H, -4 to 212 deg F

    Connection Size 1      :      1 in
    Connection Size 2      :      1 in
    Connection Type 1      :      Quick Disconnect
    Connection Type 2      :      NPT
    Dimensions      :      4.98 in L x 4.5 in W x 4.5 in H
    Finish      :      Zinc Trivalent-Plated
    Gender 1      :      Female
    Gender 2      :      Female
    Material      :      Steel
    Material Construction      :      Carbon Steel
    Pressure Rating      :      5000 psi
    Series      :      FD86
    Shape      :      Coupling
    Temperature Rating      :      -4 to 212 deg F
    Thread Size 2      :      1-11-1/2

    Eaton's FD86 Series is a thread together steel quick coupling offering dry break and high impulse technology and capabilities. The maximum operating pressure is 5000 psi. The FD86 Series is available in either wing nut or hex nut configurations for ease of assembly and disassembly.

    • Tubular valve and sleeve construction for low fluid loss and air inclusion
    • Thread together design using wing or hex nut allows connection and disconnection against pressures up to 750 psi
    • Teflon back up rings along with secondary metal-to-metal sealing contact provides high-impulse capability up to 5000 psi operating pressure
    • Acme threads prevent galling and provide ease of connection
    • Buna-N seal material

    Applications: Hydraulic and fluid transfer, mining equipment

    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Hansen and Gromelle_FD90-1012-02-04_CAT.pdf
