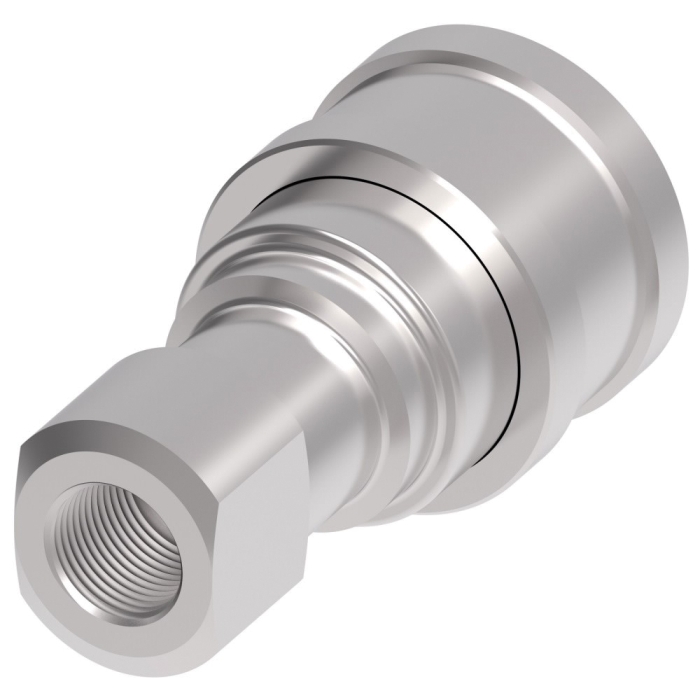

Hansen™ and Gromelle™ HK Series 303 Stainless Steel Quick Disconnect x FNPTF Straight Ball Lock Coupling with 2-Way Valve
Hansen™ and Gromelle™ HK Straight Ball Lock Coupling with 2-Way Valve, Quick Disconnect X NPTF, 303 Stainless Steel
-
ARGPN: LL6HP31
-
-
Connection Size 1:
-
Connection Size 2:
-
Connection Size 1:
Hansen™ and Gromelle™ Straight Ball Lock Coupling with 2-Way Valve, Series: HK, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 3/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1.31 in, 3500 psi, Material Construction: 303 Stainless Steel, Dimensions: 3.48 in L x 2.22 in W x 2.22 in H, Dimension Standards: ISO 7241-1 Series B, -40 to 250 deg F
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | Quick Disconnect |
| Connection Type 2 | : | NPTF |
| Dimension Standards | : | ISO 7241-1 Series B |
| Dimensions | : | 3.48 in L x 2.22 in W x 2.22 in H |
| Gender 1 | : | Female |
| Gender 2 | : | Female |
| Hex Size | : | 1.31 in |
| Material | : | Stainless Steel |
| Material Construction | : | 303 Stainless Steel |
| Pressure Rating | : | 3500 psi |
| Series | : | HK |
| Shape | : | Coupling |
| Temperature Rating | : | -40 to 250 deg F |
| Thread Size 2 | : | 3/4-14 |
Eaton HK Series stainless steel is a general-purpose industrial interchange coupling available in valved designs, offered in 303 grades of stainless steel for excellent corrosion-resistance in rugged applications. The HK Series features a ball latch mechanism with automatic self-sealing poppet valves.
- 303 stainless steel construction for greater corrosion resistance and fluid compatibility
- Self-sealing poppet valve design provides excellent high and low pressure sealing
- Sleeve lock safety mechanism
- Buna-N seal material
Applications: Agriculture, hydraulic tool, general industry, construction, fluid transfer, chemical, oil and gas, transportation, food and beverage, trucks and nuclear
