Hansen™ and Gromelle™ LL4KP26 LL4KP26

Hansen™ and Gromelle™ LL4KP26

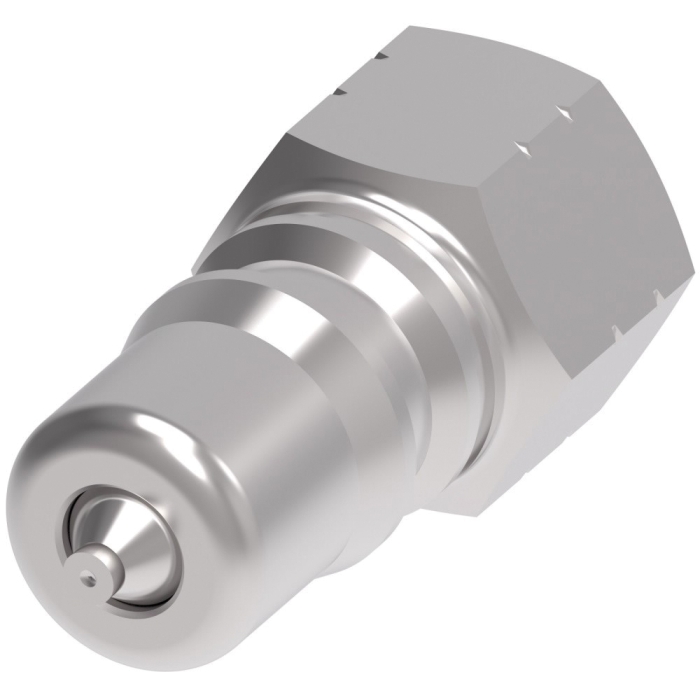

Hansen™ and Gromelle™ HK Series 303 Stainless Steel Straight Ball Lock Coupling with 2-Way Valve, 1/2 in Male Quick Disconnect x 1/2 in FNPTF

  • Manufacturer: Danfoss Power Solutions
  • Brand: Hansen™ and Gromelle™
  • ARGPN: LL4KP26
  • MPN: LL4KP26
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Danfoss Power Solutions factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Hansen™ and Gromelle™ Straight Ball Lock Coupling with 2-Way Valve, Series: HK, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1.13 in, 4250 psi, Material Construction: 303 Stainless Steel, Dimensions: 2.03 in L x 1.3 in W x 1.3 in H, Dimension Standards: ISO 7241-1 Series B, -40 to 250 deg F

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimension Standards      :      ISO 7241-1 Series B
Dimensions      :      2.03 in L x 1.3 in W x 1.3 in H
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      1.13 in
Material      :      Stainless Steel
Material Construction      :      303 Stainless Steel
Pressure Rating      :      4250 psi
Series      :      HK
Shape      :      Coupling
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      1/2-14

Eaton HK Series stainless steel is a general-purpose industrial interchange coupling available in valved designs, offered in 303 grades of stainless steel for excellent corrosion-resistance in rugged applications. The HK Series features a ball latch mechanism with automatic self sealing poppet valves.

  • 303 stainless steel construction for greater corrosion resistance and fluid compatibility
  • Self-sealing poppet valve design provides excellent high and low pressure sealing
  • Sleeve lock safety mechanism
  • Buna-N seal material

Applications: Agriculture, hydraulic tool, general industry, construction, fluid transfer, chemical, oil and gas, transportation, food and beverage, trucks and nuclear

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Hansen_and_Gromelle_4S25_CAT.pdf
