Husky 504010-03 HUSKY 504010-03

Husky 504010-03

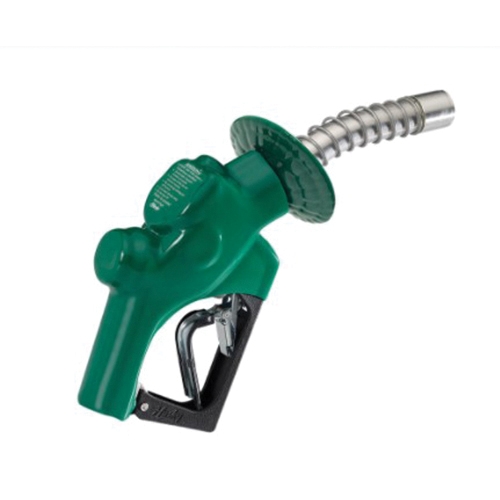

Husky VIIIS Die-Cast Aluminum Heavy-Duty Automatic Diesel Fuel Nozzle, 1 in NPT, 150 psi, 75 gpm

  • Manufacturer: Husky Corporation
  • Brand: Husky
  • ARGPN: HUSKY 504010-03
  • MPN: 504010-03
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Husky Corporation factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Husky Heavy-Duty Automatic Diesel Fuel Nozzle, Series: VIIIS, 1 in Pipe, Pipe Connection Type: NPT, 75 gpm, 150 psi, Material Construction: Die-Cast Aluminum

California residents see Prop 65 WARNINGS

Flow Rate      :      75 gpm
Material      :      Aluminum
Material Construction      :      Die-Cast Aluminum
Pipe Connection Type      :      NPT
Pipe Size      :      1 in
Pressure Rating      :      150 psi
Product Type      :      Diesel Fuel Nozzle
Series      :      VIIIS
  • Pressure activated, automatic shut-off nozzle with polymer handguard for truck stop and other high volume full-service, self-service and unattended stations
  • Husky® VIIIS nozzle shut-off when the pump shut-off, the gas tank is full, the lever is opened before the pump is turned on, the leak detector has not completed the test cycle
  • Spout is reinforced with thick aluminum bushing that retains spout spring and keeps spout from rounding-in, the two leading causes of clicking off and splash-back spillage
  • Nozzle is equipped with a unique Flo-Stop® device that shut-off the nozzle if it falls from the fill tank or raises above the horizontal
  • FKM seal
  • Double O-ring seal protected by fiber reinforced PTFE packing
  • One-piece contoured steel lever
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Husky_504010-03_CAT.pdf
  • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Husky_504010-03_II.pdf
