Ideal Tridon® 30010-0163 STBC163

Ideal Tridon® 30010-0163

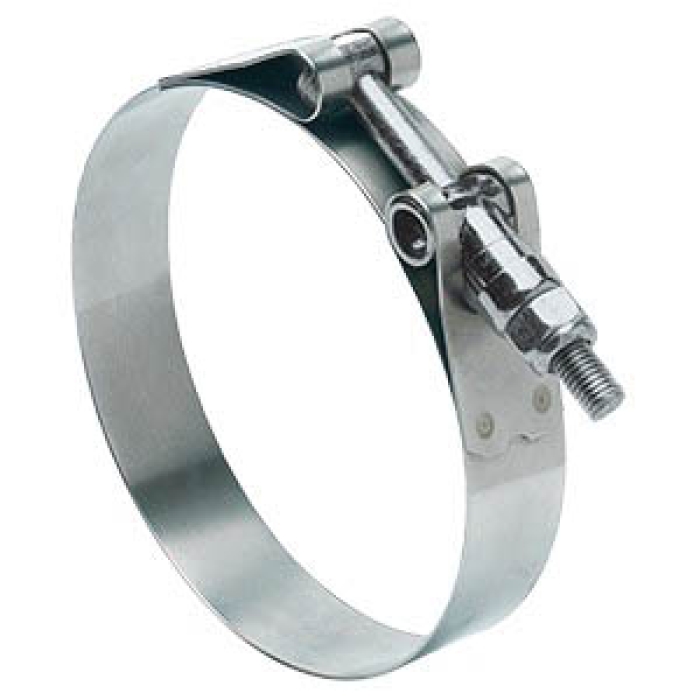

Ideal Tridon® Flex-Gear® 30010 301 Stainless Steel Constant T-Bolt Clamp, #163, 3/4 in W

  • Manufacturer: Ideal Clamp Products
  • Brand: Ideal Tridon®
  • ARGPN: STBC163
  • MPN: 30010-0163
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Ideal Clamp Products factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Ideal Tridon® Flex-Gear® Constant T-Bolt Clamp, Series: 30010, Nominal Size: 163, 1.88 in Maximum Clamp Diameter, 1.63 in Minimum Clamp Diameter, Locking Style: Bolt, Torque Rating: 8.5 N-m, Material Construction: 301 Stainless Steel, 3/4 in Width

Industry Category      :      Marine Clamps
Locking Style      :      Bolt
Material      :      Stainless Steel
Material Construction      :      301 Stainless Steel
Maximum Clamp Diameter      :      1.88 in
Minimum Clamp Diameter      :      1.63 in
Nominal Size      :      #163
Product Type      :      T-Bolt Clamp
Series      :      30010
Sub Brand      :      Flex-Gear®
Torque Rating      :      8.5 N-m
Width      :      3/4 in

T-bolt clamps provide uniform sealing pressure for a positive, reliable seal. Designed for use in high vibration and large diameter applications common in heavy trucks, industrial machinery, off-road equipment, agricultural irrigation and machinery. Features a 3/4 in or 7/8 in wide stainless steel band, depending upon size ordered, and welded construction for reliability.

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Ideal Tridon_30010-0163_CAT.pdf
