Ideal Tridon® 4304051 43040

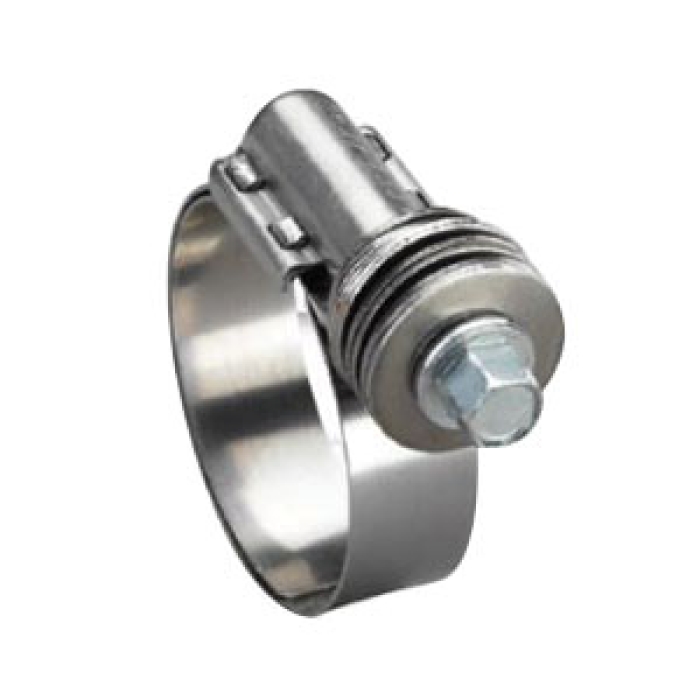

Ideal Tridon® Flex-Gear® 43 Series 301 Stainless Steel Constant Tension Clamp

Ideal Tridon® Flex-Gear® 43 Constant Tension Clamp, 301 Stainless Steel

pin-int

Ideal Tridon® Flex-Gear® Constant Tension Clamp, Series: 43, Nominal Size: 40, 3 in Maximum Clamp Diameter, 2.06 in Minimum Clamp Diameter, Material Construction: 301 Stainless Steel, 9/16 in Width

Material      :      Stainless Steel
Material Construction      :      301 Stainless Steel
Maximum Clamp Diameter      :      3 in
Minimum Clamp Diameter      :      2.06 in
Nominal Size      :      40
Product Type      :      Constant Tension Clamp
Series      :      43
Width      :      9/16 in

Flex-Gear® clamps use a belleville spring design to eliminate "cold flow" leakage that adjusts with the hose and fitting to maintain constant tension on the connection, eliminating leak paths. Flex-Gear® clamps are an excellent choice for fluctuating temperature applications and thermal compensation.

  • Belleville spring and clamp construction is built to respond to constant temperature fluctuations
  • The larger, heavier-gauge, precision-formed springs provide higher rates of band tension and adjustment for a more dependable seal
  • Inner liner protects against shearing of the hose surfaces
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Tridon_6806051_CAT.pdf
