Ideal Tridon® 4545051 CT450L

Ideal Tridon® 4545051

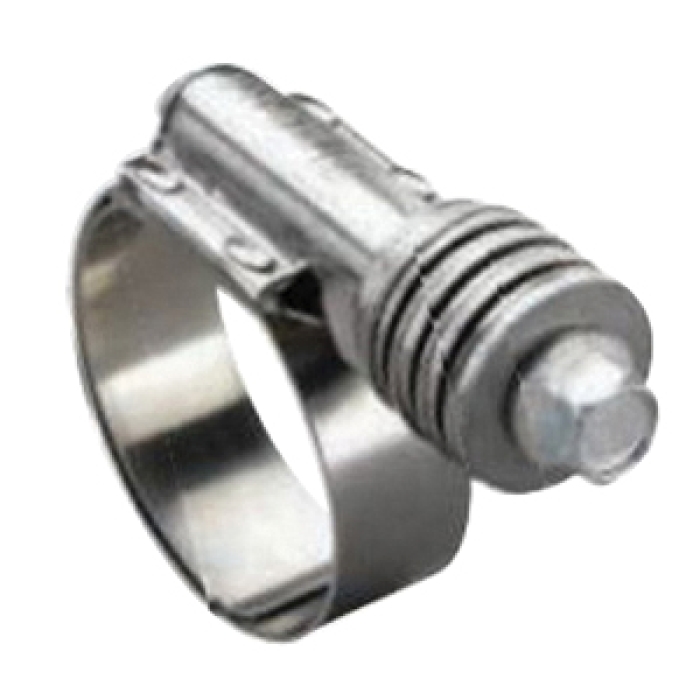

Ideal Tridon® Flex-Gear® 45 Series 304 Stainless Steel Constant Tension Band Clamp, #462, 5/16 in W

  • Manufacturer: Ideal Clamp Products
  • Brand: Ideal Tridon®
  • ARGPN: CT450L
  • MPN: 4545051
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Ideal Clamp Products factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Ideal Tridon® Flex-Gear® Constant Tension Band Clamp, Series: 45, Nominal Size: 462, 4.62 in Maximum Clamp Diameter, 3-3/4 in Minimum Clamp Diameter, Torque Rating: 8.5 N-m, Material Construction: 304 Stainless Steel, 5/16 in Width

Material      :      Stainless Steel
Material Construction      :      304 Stainless Steel
Maximum Clamp Diameter      :      4.62 in
Minimum Clamp Diameter      :      3-3/4 in
Nominal Size      :      462
Product Type      :      Band Clamp
Series      :      45
Torque Rating      :      8.5 N-m
Width      :      5/16 in

Flex-Gear® clamps use a Belleville spring design to eliminate "cold flow" leakage that adjusts with the hose and fitting to maintain constant tension on the connection, eliminating leak paths. Flex-Gear® clamps are an excellent choice for fluctuating temperature applications and thermal compensation.

  • Belleville spring and clamp construction is built to respond to constant temperature fluctuations
  • The larger, heavier-gauge, precision-formed springs provide higher rates of band tension and adjustment for a more dependable seal
  • Inner liner protects against shearing of the hose surfaces
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Ideal Tridon_30010-0163_CAT.pdf
