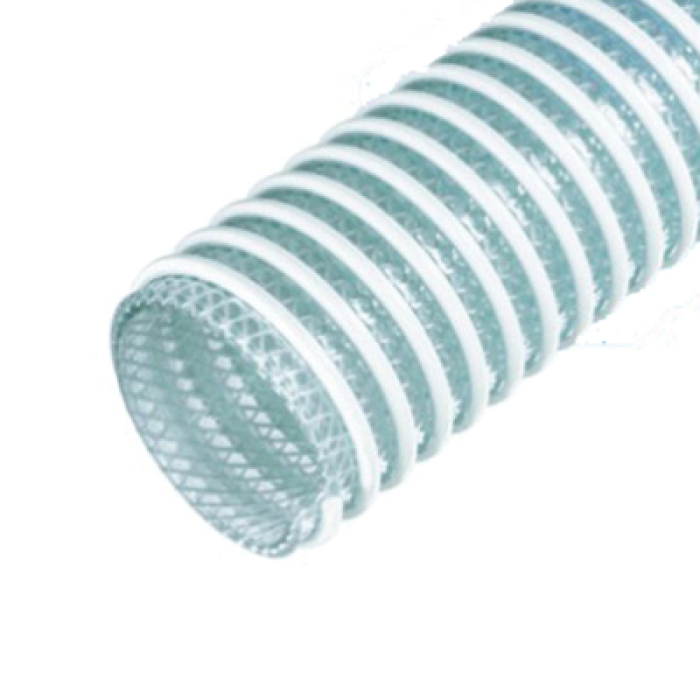

Kanaflex® KLFW Clear Flexible PVC Heavy-Duty Suction and Discharge Food-Grade Hose
Kanaflex® KLFW is a heavy-duty suction and discharge hose designed for food-grade applications, including bottling, wine making, canning, dairy, brewing, and other liquid food processes. Made from flexible PVC with a rigid PVC helix and synthetic braiding, it offers excellent durability and flexibility for both suction and discharge needs. The clear sidewall allows for visual monitoring of material flow, and the external helix facilitates easy dragging. Rated to 110 PSI and operating in temperatures from -40°F to 140°F, this lightweight hose is ideal for demanding food and beverage transfer applications.
-
ARGPN: FW300
-
-
Nominal Size:
-
Inside Diameter:
-
Nominal Size:
Kanaflex® Heavy-Duty Suction and Discharge Food-Grade Hose, Series: KLFW, Nominal Size: 3 in, 3.7 in OD, 3 in ID, 100 psi, Material Construction: Flexible PVC, Construction: Rigid PVC Helix, Synthetic Braiding, Clear, 6.3 in at 72 deg F Bend Radius, -40 deg F Low, 140 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 6.3 in at 72 deg F |
| Color | : | Clear |
| Construction | : | Rigid PVC Helix, Synthetic Braiding |
| Inside Diameter | : | 3 in |
| Material | : | PVC |
| Material Construction | : | Flexible PVC |
| Nominal Size | : | 3 in |
| Outside Diameter | : | 3.7 in |
| Pressure Rating | : | 100 psi |
| Product Type | : | Food-Grade Hose |
| Series | : | KLFW |
| Temperature High | : | 140 deg F |
| Temperature Low | : | -40 deg F |
- Lightweight and flexible
- External helix provides easy drag
- Rated for both suction and discharge
- Clear sidewall permits visual check of material flow
Applications: For bottling, wine making, canning, dairy, brewing and liquid foods
