Kingston Valves 226A-5-5 226A-5-5

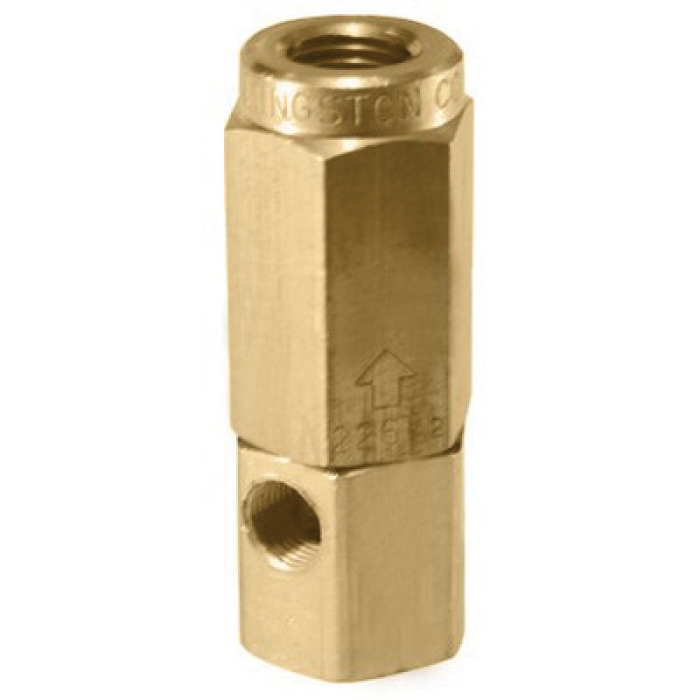

Kingston Valves 226A Brass Vertical Check Valve

Kingston Valves 226A Vertical Check Valve, NPT, Brass, 400 psi

  • Add to cart
    Add To Favorites
    • pin-int

    Kingston Valves Vertical Check Valve, Series: 226A, Nominal Size: 3/4 in, Connection Type: NPT, Material Construction: Brass, 25% Glass Fiber Filled TFE Disc, Brass Bushing Trim, 3-3/16 in Height, 250 - 350 deg F, 400 psi

    Connection Type      :      NPT
    Height      :      3-3/16 in
    Material      :      Brass
    Material Construction      :      Brass
    Nominal Size      :      3/4 in
    Pressure Rating      :      400 psi
    Product Type      :      Check Valve
    Series      :      226A
    Temperature Rating      :      250 - 350 deg F
    Trim Material      :      25% Glass Fiber Filled TFE Disc, Brass Bushing

    Kingston model 226a vertical check valve is a robust check valve offering the same basic features as the model 226 but is slightly longer, has a 1/8 in unloader port and is available with PTFE disc only. Kingston vertical check valves are designed for use on the discharge line of lubricated or non-lubricated air compressors to prevent back flow from the air tank.

    • Designed specifically for use in vertical pipe lines
    • PTFE disc for high/low temperature applications
    • Kingston quality design, engineering and precision manufacturing
    • Brass spring seat, carbon steel snap ring, stainless steel spring

    Applications: For lubricated or non-lubricated air compressors

    • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kingston Valves_226A-3-3_SS.pdf
