Alfagomma Industrial® T604AA075X100 T604AA075

Kuriyama Alfagomma® T604AA NBR Oil Return Hose

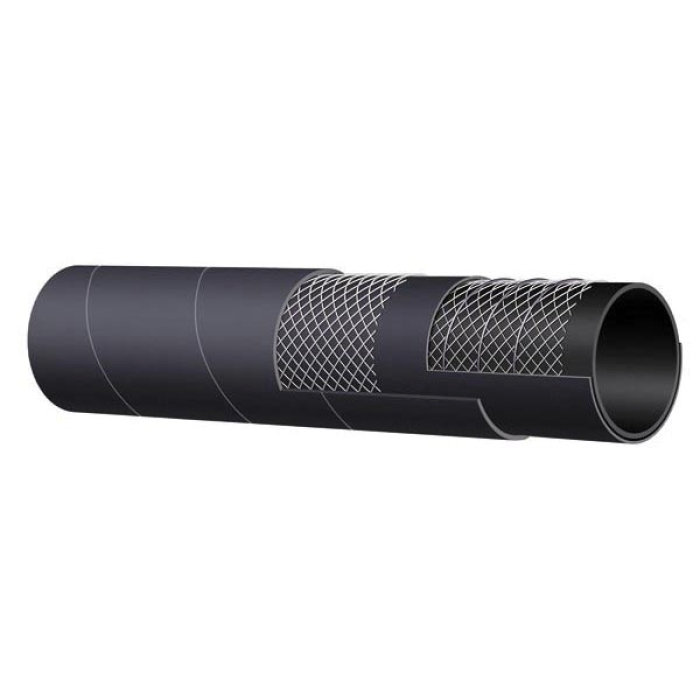

Kuriyama Alfagomma® T604AA Oil Return Hose, Black, NBR

pin-int

Kuriyama Alfagomma Industrial® Oil Return Hose, Series: T604AA, Nominal Size: 3/4 in, 1.14 in OD, 3/4 in ID, 1 ft Length, 300 psi, Material Construction: NBR, CR Cover, Construction: High-Tensile Textile Cords with Flexible Steel Helix Wire, Black, 2-1/4 in Bend Radius, Resistance Properties: Abrasion, Fuel, Oil, Ozone, Weather, -40 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      2-1/4 in
Color      :      Black
Construction      :      High-Tensile Textile Cords with Flexible Steel Helix Wire
Cover Material      :      CR
Inside Diameter      :      3/4 in
Length      :      100 ft
Material      :      Nitrile
Material Construction      :      NBR
Nominal Size      :      3/4 in
Outside Diameter      :      1.14 in
Pressure Rating      :      300 psi
Product Type      :      Oil Return Hose
Resistance Properties      :      Abrasion, Fuel, Oil, Ozone, Weather
Series      :      T604AA
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F
  • Black conductive NBR tube

Applications: Low-pressure return lines or suction lines with half the bend radius requirements of SAE J517 100 R4, service with petroleum-based hydraulic fluids, water-glycol and water-fire-resistant hydraulic fluids, oil, lubricants, crude oil, fuel oils and water

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kuriyama_T600AA300X50_CAT.pdf
  • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kuriyama_T604AA075X100_SS.pdf
