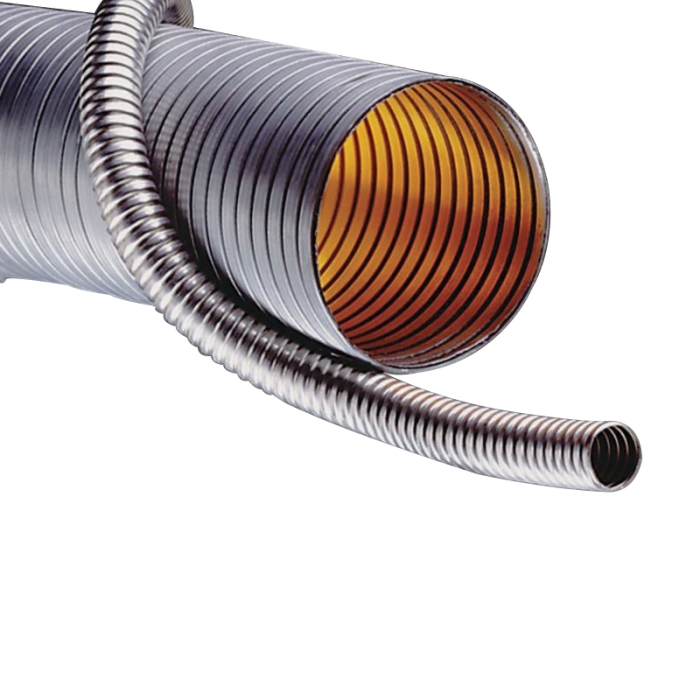

Kuriyama HoseTec® HTS4100 304 Stainless Steel Rough Bore Extra Light Weight Interlocked Metal Hose

Kuriyama HoseTec® HTS4100 is an extra lightweight interlocked metal hose designed for high-temperature and abrasive material handling. Constructed from a single strip of 304 stainless steel wound into an interlocked design, it offers flexibility and durability, withstanding temperatures up to 1500°F. Its conductive design prevents static buildup, reducing the risk of hose arcing, while the steel construction provides resistance to abrasion and corrosion. Full vacuum-rated, this hose is ideal for demanding applications such as abrasive material transfer, bulk truck and railcar unloading, dry bulk transfer, fly ash handling, and high-temperature air transfer. Made in the USA, it is a reliable solution for rugged industrial environments.

Kuriyama Hose Tec® Rough Bore Extra Light Weight Interlocked Metal Hose, Series: HTS4100, Nominal Size: 1-1/2 in, 1-1/2 in ID, 0.011 in Thick Wall, 1 ft Length, Material Construction: 304 Stainless Steel, Construction: A Single Strip of 304 Stainless Steel Wound into a Interlocked Metal Hose, with or without Packing Materials, 4-3/4 in Bend Radius, Resistance Properties: Abrasion, Corrosion, Heat, 1500 deg F High

Bend Radius      :      4-3/4 in
Construction      :      A Single Strip of 304 Stainless Steel Wound into a Interlocked Metal Hose, with or without Packing Materials
Inside Diameter      :      1-1/2 in
Length      :      25 ft
Material      :      Stainless Steel
Material Construction      :      304 Stainless Steel
Nominal Size      :      1-1/2 in
Product Type      :      Interlocked Metal Hose
Resistance Properties      :      Abrasion, Corrosion, Heat
Series      :      HTS4100
Temperature High      :      1500 deg F
Wall Thickness      :      0.011 in
  • Conductive prevents the build-up of static electricity eliminating the risk of "hose arcing"
  • Flexible corrugations allow for greater flexibility than lined metal hose
  • Steel construction resists damage from abrasive and damaging materials
  • Resists corrosion making it resistant to the elements
  • Can withstand very high-temperatures allowing for the transfer of hot materials
  • Full vacuum-rated
  • Made in USA

Applications: For abrasive material handling, bulk truck and railcar unloading, dry bulk transfer, fly ash and soda handling, gasses and materials, grain handling, transfer of high-temperature air, truck tailpipe exhaust, vacuum trucks and equipment

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kuriyama_HTG4100-100X25_CAT.pdf
