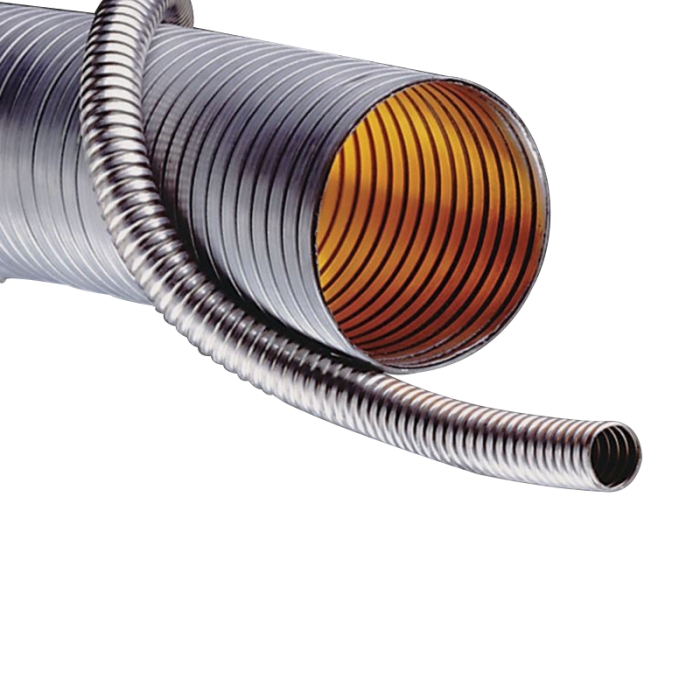

Kuriyama HoseTec® HTS4200 is a medium-weight interlocked metal hose made from 304 stainless steel, designed for high-temperature and abrasive material handling. Its construction uses a single strip of stainless steel wound into an interlocked design, offering flexibility and durability with a 14.5-inch bend radius. This hose can withstand temperatures up to 1500°F, making it ideal for transferring hot materials. The conductive design prevents static buildup, reducing the risk of hose arcing, while the stainless steel construction resists corrosion and abrasion. Full vacuum-rated, it is suitable for demanding applications, including bulk truck unloading, dry bulk transfer, fly ash handling, and high-temperature air transfer. Made in the USA, it provides reliable performance for rigorous industrial environments.
Kuriyama HoseTec® Rough Bore Medium Weight Interlocked Metal Hose, Series: HTS4200, Nominal Size: 3 in, 3 in ID, 0.0185 in Thick Wall, 1 ft Length, Material Construction: 304 Stainless Steel, Construction: A Single Strip of 304 Stainless Steel Wound into a Interlocked Metal Hose, with or without Packing Materials, 11 in Bend Radius, Resistance Properties: Abrasion, Corrosion, Heat, 1500 deg F High
Bend Radius | : | 11 in |
Construction | : | A Single Strip of 304 Stainless Steel Wound into a Interlocked Metal Hose, with or without Packing Materials |
Inside Diameter | : | 3 in |
Length | : | 25 ft |
Material | : | Stainless Steel |
Material Construction | : | 304 Stainless Steel |
Nominal Size | : | 3 in |
Product Type | : | Interlocked Metal Hose |
Resistance Properties | : | Abrasion, Corrosion, Heat |
Series | : | HTS4200 |
Temperature High | : | 1500 deg F |
Wall Thickness | : | 0.0185 in |
Applications: For abrasive material handling, bulk truck and railcar unloading, dry bulk transfer, fly ash and soda handling, gasses and materials, grain handling, transfer of high-temperature air, truck tailpipe exhaust, vacuum trucks and equipment
