Kuri Tec® K9296-48X100 K9296-48

Kuri Tec® K9296-48X100

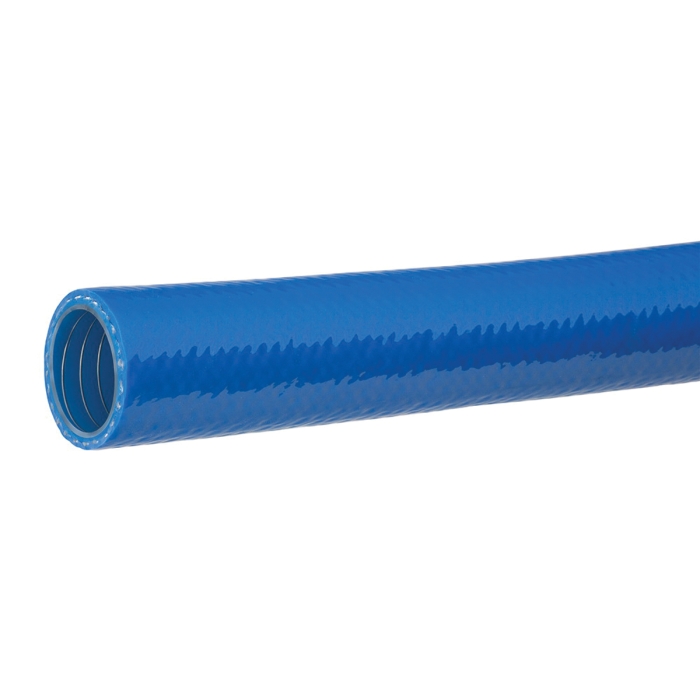

Kuriyama Kuri Tec® K-Tough™ K9296 Blue PVC High-Pressure Suction and Discharge Hose, 3 in, 1 ft L, 150 psi

pin-int

Kuriyama Kuri Tec® High-Pressure Suction and Discharge Hose, Series: K-Tough™ K9296, Nominal Size: 3 in, 3.57 in OD, 3 in ID, 1 ft Length, 150 psi, Material Construction: PVC, PVC Cover, Construction: Galvanized Steel Wire Helix, High-Tensile Strength Yarn and Blue Phthalate-Free PVC Cover, Blue, 11 in Bend Radius, Resistance Properties: Abrasion, -5 deg F Low, 150 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      11 in
Color      :      Blue
Construction      :      Galvanized Steel Wire Helix, High-Tensile Strength Yarn and Blue Phthalate-Free PVC Cover
Cover Material      :      PVC
Inside Diameter      :      3 in
Length      :      100 ft
Material      :      PVC
Material Construction      :      PVC
Nominal Size      :      3 in
Outside Diameter      :      3.57 in
Pressure Rating      :      150 psi
Product Type      :      Suction and Discharge Hose
Resistance Properties      :      Abrasion
Series      :      K-Tough™ K9296
Temperature High      :      150 deg F
Temperature Low      :      -5 deg F

Clear phthalate-free PVC core, galvanized steel wire helix, high-tensile strength yarn reinforcement and blue phthalate-free PVC cover.

  • Food-grade materials hose complies with applicable FDA requirements
  • Increased pressure rating - new heavy-duty construction results in a highly durable product, designed for both indoor and demanding outdoor applications
  • Superior flexibility - more flexible than other similar hoses for ease of use
  • High cycle strength - designed to resist damage from constant flex applications
  • Abrasion-resistant cover resists wear from being dragged on rough surfaces
  • Clear PVC core, galvanized steel wire helix, high-tensile strength yarn reinforcement and blue phthalate-free PVC cover construction
  • Static dissipative - steel wire helps prevent the build-up of static electricity for added safety
  • Phthalate-free
  • Made in North America

Applications: For batch plants, constant flex applications, liquid chemical handling, mining applications (MSHA), oil field water hauling, suction and discharge of water and slurries, tank trucks

  • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kuriyama_K9296-48X100_SS.pdf
