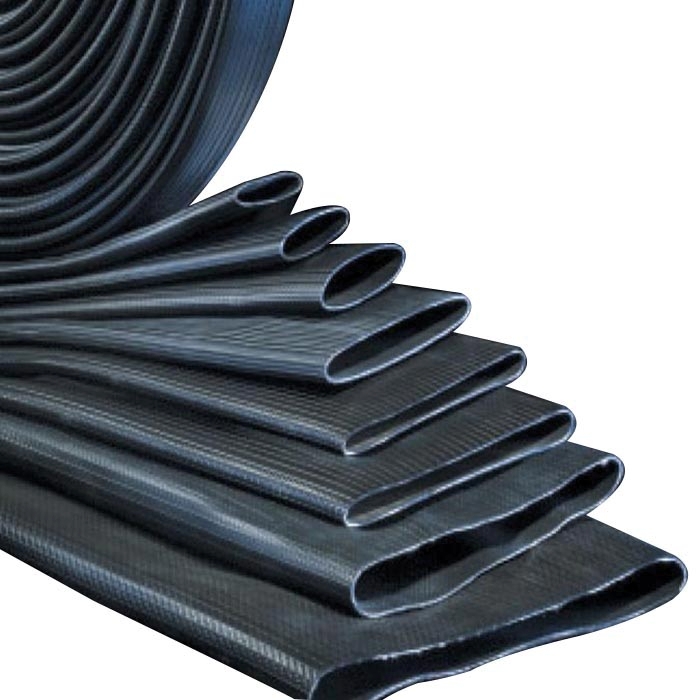

Kuriyama OROFLEX® OF10 PVC/Nitrile Rubber Discharge Hose
Kuriyama OROFLEX® OF10 Discharge Hose is designed for high-performance applications, featuring a proprietary PVC/Nitrile material for exceptional abrasion, UV, chemical, and oil resistance. Its unique woven construction resists kinking, snaking, stretching, and twisting, ensuring reliable use in demanding environments. With a pressure rating of 200 psi, a tensile strength of 5000 lbs, and a temperature range from -20°F to 176°F, this flat hose design offers compact storage and transport. Ideal for agriculture, dewatering, drainage, industrial washdown, irrigation, cable covering, and flotation booms.
-
ARGPN: GF300
-
-
Available for Pickup
- Anchorage, AK Branch:
Click here
-
Available for Shipping:
-
Available for KURIYAMA OF AMERICA, INC factory-direct delivery:
Kuriyama OROFLEX® Discharge Hose, Series: OF10, Nominal Size: 3 in, 3 in ID, 0.09 in Thick Wall, 1 ft Length, 175 psi, Tensile Strength: 11750 lb, Material Construction: Nitrile Rubber/PVC, Construction: Extruded Through-the-Weave Process with Circular Woven High-Tenacity Polyester, Black, Resistance Properties: Kinking, Snaking, Stretching, Twisting, -20 deg F Low, 176 deg F High
| Attribute Type Configurator | : | Parent |
| Color | : | Black |
| Construction | : | Extruded Through-the-Weave Process with Circular Woven High-Tenacity Polyester |
| Inside Diameter | : | 3 in |
| Length | : | 200 ft |
| Material | : | Nitrile |
| Material Construction | : | Nitrile Rubber/PVC |
| Nominal Size | : | 3 in |
| Pressure Rating | : | 175 psi |
| Product Type | : | Discharge Hose |
| Resistance Properties | : | Kinking, Snaking, Stretching, Twisting |
| Series | : | OF10 |
| Temperature High | : | 176 deg F |
| Temperature Low | : | -20 deg F |
| Tensile Strength | : | 11750 lb |
| Wall Thickness | : | 0.09 in |
- Proprietary PVC/Nitrile material specially developed PVC/Nitrile material provides superior abrasion, UV, chemical and oil resistance compared to PVC hoses
- Unique woven construction specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting
- Compact design flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses
- An extruded through the weave process with circular woven high-tenacity polyester reinforcement
- Made in Europe
Applications: Agriculture, cable covering, dewatering, drainage, floatation booms, industrial washdown and irrigation
