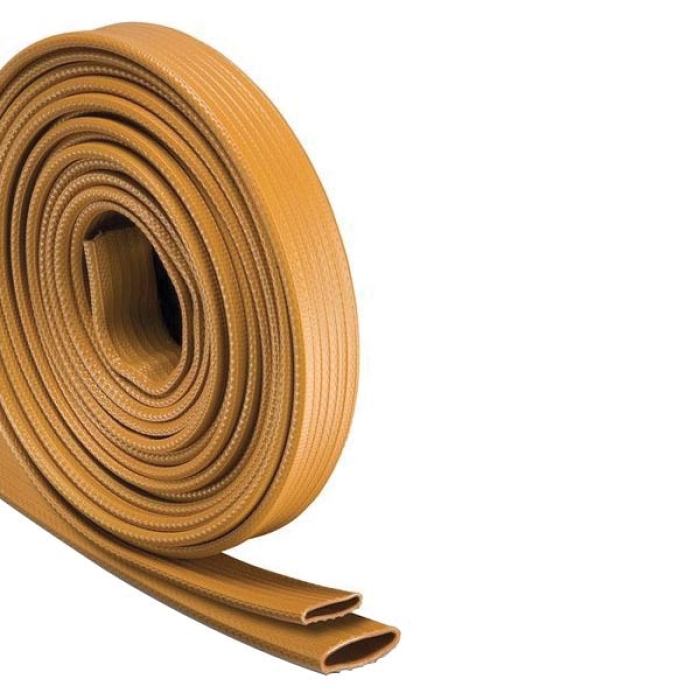

Kuriyama OROFLEX® OF20Y PVC/Nitrile Rubber Discharge Hose
Kuriyama OROFLEX® OF20Y Discharge Hose is a high-pressure, durable solution for demanding applications. Made from proprietary PVC/Nitrile material, it offers superior resistance to abrasion, UV, chemicals, and oil. Its unique woven construction prevents snaking, kinking, stretching, and twisting, ensuring reliable performance. With a pressure rating of 483 psi, a tensile strength of 3300 lbs, and a temperature range of -20°F to 176°F, this compact, flat hose design is easy to store and transport. Ideal for agriculture, air compressors, bulk powder discharge, cable covering, dewatering, drainage, and flotation booms.
-
ARGPN: GFY150
-
-
Inside Diameter:
-
Inside Diameter:
OROFLEX® Discharge Hose, OF20Y Series, Water Discharge Hose, 1-1/2 in Nominal, 1-1/2 in Inside Diameter, 200 ft Length, Nitrile/PVC Tube, Extruded Through-The-Weave Process with Circular Woven High Tenacity Polyester Reinforcement, Yellow Hose, 305 psi, Resistance Properties: Abrasion, Chemical, Oil, Snaking, UV, Temperature High: 176 deg F, Temperature Low: -20 deg F, 0.11 in Wall Thickness, 6600 lb Tensile Strength
| Attribute Type Configurator | : | Parent |
| Color | : | Yellow |
| Construction | : | Extruded Through-the-Weave Process with Circular Woven High-Tenacity Polyester |
| Hose Color | : | Yellow |
| Hose Type | : | Water Discharge Hose |
| Inside Diameter | : | 1-1/2 in |
| Length | : | 200 ft |
| Material | : | Nitrile |
| Material Construction | : | Nitrile Rubber/PVC |
| Nominal Size | : | 1-1/2 in |
| Pressure Rating | : | 305 psi |
| Product Type | : | Discharge Hose |
| Reinforcement | : | Extruded Through-The-Weave Process with Circular Woven High Tenacity Polyester |
| Resistance Properties | : | Abrasion, Chemical, Oil, Snaking, UV |
| Series | : | OF20Y Series |
| Temperature High | : | 176 deg F |
| Temperature Low | : | -20 deg F |
| Tensile Strength | : | 6600 lb |
| Tube Material | : | Nitrile/PVC |
| Wall Thickness | : | 0.11 in |
- Proprietary PVC/nitrile material specially developed PVC/Nitrile material provides superior abrasion, UV, chemical- and oil-resistant compared to PVC hoses
- Unique woven construction, specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting
- Compact design flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses
