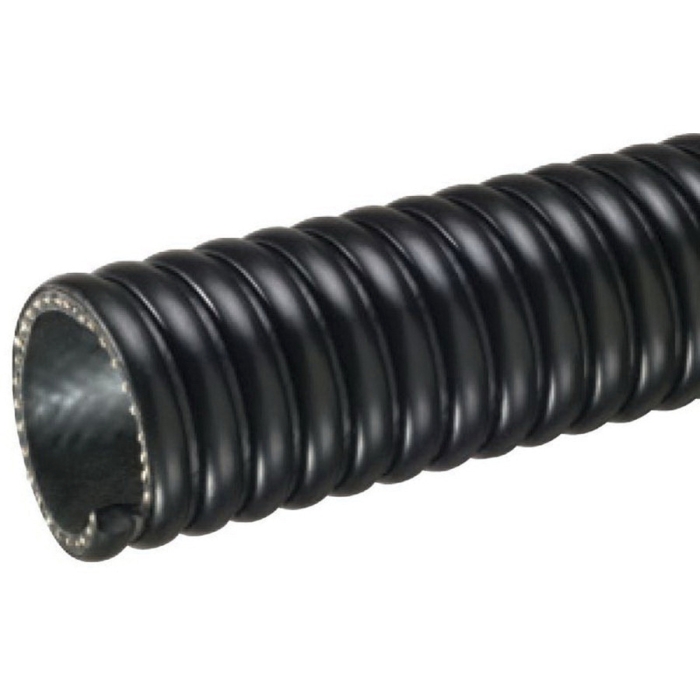

Kuriyama Tigerflex® SD TSD™ EPDM Standard Length Suction and Discharge Hose
The Kuriyama Tigerflex® SD TSD™ is a high-performance suction and discharge hose ideal for agriculture, construction, and wastewater applications. Constructed with premium 2-ply EPDM and reinforced with high-tensile polyester fabric, it handles both suction and high-pressure discharge applications with ease. Rated up to 100 PSI and functional in temperatures from -40°F to 160°F, it remains flexible even in sub-zero conditions. The polyethylene rigid helix design protects against wear and enables smooth maneuvering over rough surfaces and around corners. This hose is built for durability in demanding tasks, including liquid fertilizer handling, septic systems, and dewatering projects. Made in the USA, it combines reliability and ease of handling for tough environments.
-
ARGPN: TSD300
-
-
Nominal Size:
-
Nominal Size:
Kuriyama Tigerflex® Standard Length Suction and Discharge Hose, Series: SD TSD™, Nominal Size: 3 in, 3.62 in OD, 3 in ID, 1 ft Length, 90 psi, Material Construction: EPDM, Construction: 2-Ply EPDM, Polyester Fabric Reinforcement and Polyethylene Helix, Black, 8 in Bend Radius, Resistance Properties: Chemical, -40 deg F Low, 160 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 8 in |
| Color | : | Black |
| Construction | : | 2-Ply EPDM, Polyester Fabric Reinforcement and Polyethylene Helix |
| Inside Diameter | : | 3 in |
| Length | : | 100 ft |
| Material | : | EPDM |
| Material Construction | : | EPDM |
| Nominal Size | : | 3 in |
| Outside Diameter | : | 3.62 in |
| Pressure Rating | : | 90 psi |
| Product Type | : | Suction and Discharge Hose |
| Resistance Properties | : | Chemical |
| Series | : | SD TSD™ |
| Temperature High | : | 160 deg F |
| Temperature Low | : | -40 deg F |
- Superior rubber compounds - Tigerflex® uses only the best available EPDM compounds
- Fabric reinforcement designed with high-tensile strength polyester yarn jacket to handle both suction and higher pressure discharge applications
- Cold-Flex materials hose remains flexible in sub-zero temperatures
- Easy slide helix rigid helix design protects hose tube from cover wear and allows hose to slide easily over rough surfaces and around corners
- Easy-to-handle
- Convoluted outer cover provides increased hose flexibility
- Made in USA
Applications: For agriculture liquid fertilizers, agri-foam systems, liquid manure handling, pumps, rental and construction dewatering, septic and wastewater handling
