Tigerflex® NDH303X100 NDH303

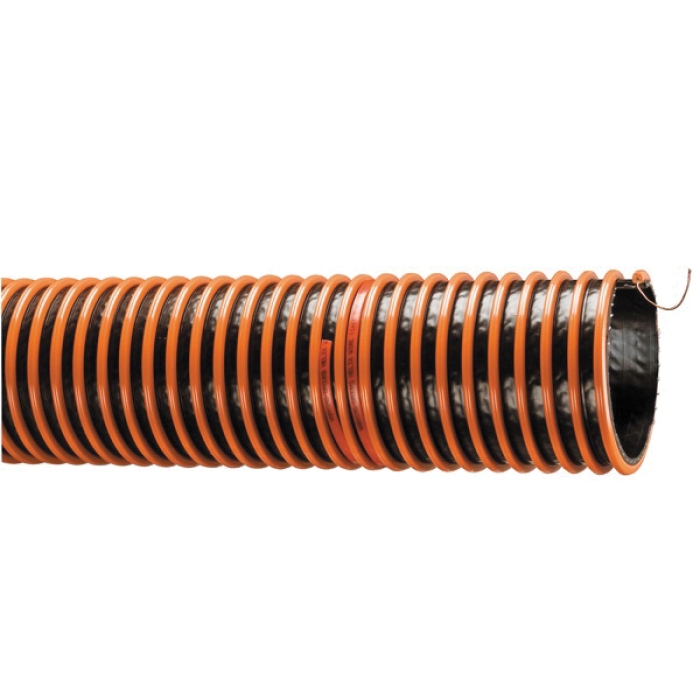

Kuriyama Tigerflex® Tigerdrop™ NDH NBR Drop Hose

Kuriyama Tigerflex® Tigerdrop™ NDH Drop Hose, Black, NBR

pin-int

Kuriyama Tigerflex® Drop Hose, Series: Tigerdropx™ NDH, 3.69 in OD, 3.03 in ID, 1 ft Length, 70 psi, Material Construction: NBR, Construction: High-Tensile Strength Polyester Yarn Fabric, Black, 6 in Bend Radius, -10 deg F Low, 150 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      6 in
Color      :      Black
Construction      :      High-Tensile Strength Polyester Yarn Fabric
Inside Diameter      :      3.03 in
Length      :      100 ft
Material      :      Nitrile
Material Construction      :      NBR
Outside Diameter      :      3.69 in
Pressure Rating      :      70 psi
Product Type      :      Drop Hose
Series      :      Tigerdrop™ NDH
Sub Brand      :      Tigerflex®
Temperature High      :      150 deg F
Temperature Low      :      -10 deg F
  • Specially blended nitrile (NBR) rubber tube with rigid PVC helix and embedded grounding wire construction
  • Specialty rubber compounds designed to handle gasoline, diesel, ethanol and biodiesel
  • Easy-to-handle, lighter weight and greater flexibility than conventional rubber drop hoses
  • Durable multi-strand copper wire dissipates static electricity
  • Physically extract wire from the rigid helix and bond to the metal coupling to ground
  • Static dissipating tube specially formulated to help prevent the build-up of static electricity for added safety
  • Rigid clockwise helix design protects hose tube from cover wear and allows hose to slide easily over rough surfaces
  • Phthalate-free
  • Made in USA

Applications: For tank truck gravity drop fuel transfer

  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kuriyama_NDH404X57_CAT.pdf
  • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kuriyama_NDH202X100_SS.pdf
