Kuriyama TV303X100 TV303

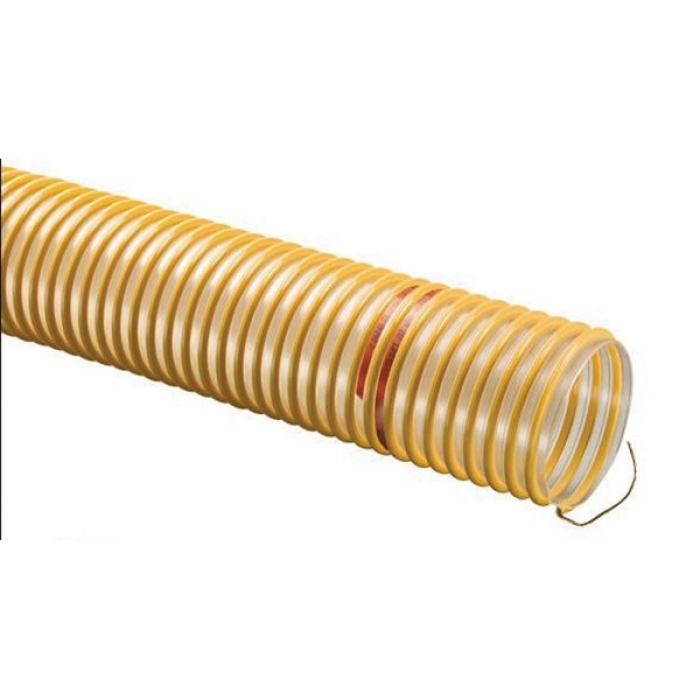

Kuriyama Tigerflex®, Tigervapor™ TV Series Polyurethane Vapor Recovery Hose

Kuriyama Tigerflex® TV Vapor Recovery Hose, Polyurethane

  • Add to cart
    Add To Favorites
    • pin-int

    Kuriyama Tigerflex® Vapor Recovery Hose, Series: TV, Nominal Size: 3.03 in, 3.57 in OD, 3.03 in ID, 1 ft Length, 11 psi, Material Construction: Polyurethane, Construction: Rigid PVC Helix and Embedded Grounding Wire, 3-1/2 in Bend Radius, -40 deg F Low, 140 deg F High, For Use With: Couplings

    Attribute Type Configurator      :      Parent
    Bend Radius      :      3-1/2 in
    Construction      :      Rigid PVC Helix and Embedded Grounding Wire
    For Use With      :      Couplings
    Inside Diameter      :      3.03 in
    Length      :      100 ft
    Material      :      Polyurethane
    Material Construction      :      Polyurethane
    Nominal Size      :      3.03 in
    Outside Diameter      :      3.57 in
    Pressure Rating      :      11 psi
    Product Type      :      Vapor Recovery Hose
    Series      :      TV
    Sub Brand      :      Tigerflex®
    Temperature High      :      140 deg F
    Temperature Low      :      -40 deg F
    • Much lighter than conventional TPR/rubber hoses
    • Superior flexibility especially in sub-zero weather
    • Durable multi-strand copper wire dissipates static electricity
    • Physically extract wire from the rigid helix and bond to the metal coupling (or by other means) to ground
    • Rigid counter clockwise helix design protects hose tube from cover wear and allows hose to slide easily over rough surfaces
    • Specially designed to handle gasoline, ethanol (Meeting ASTM D5798, D4806 or D6751 criteria), diesel and biodiesel (Meeting ASTM D5798, D4806 or D6751 criteria) vapors
    • Won't swell or become stiff like conventional TPR/rubber hoses
    • Long life reduces operating costs
    • Phthalate-free
    • Made in USA

    Applications: For visual confirmation if fuel backs up into the tank truck vapor recovery system

    • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kuriyama_TV202X100_SS.pdf
