Tigerflex® UBK500X20 UBK500

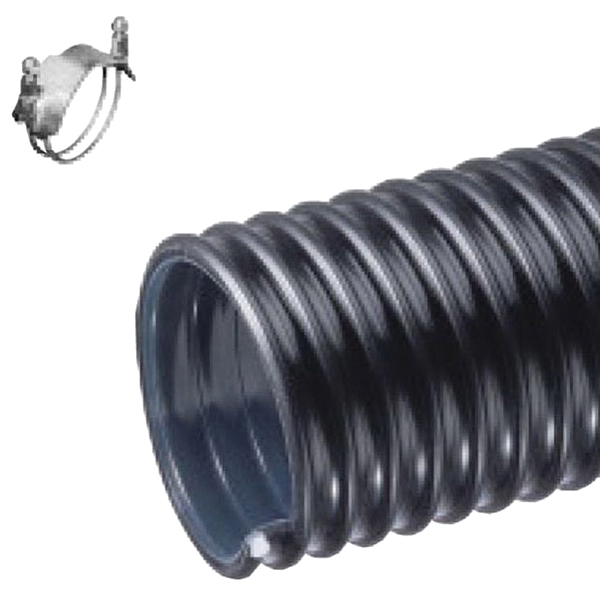

Kuriyama Tigerflex® UBK™ Black Polyurethane Heavy-Duty Material Handling Hose

The Kuriyama Tigerflex® Heavy-Duty Material Handling Hose, Series UBK™, is engineered for extreme abrasion resistance and durability in demanding dry material handling applications. With a working pressure of 30 psi, this hose features a thick polyurethane liner for superior abrasion resistance and a rigid PVC helix that ensures ease of handling and long-lasting performance. The static-dissipative cover prevents static electricity build-up, enhancing safety and maintaining smooth material flow. Cold Flex™ materials ensure the hose remains flexible even in severe sub-zero temperatures. Resistant to most animal and petroleum-based oils, this phthalate-free hose is proudly made in the USA, offering a reliable solution for heavy-duty applications.

pin-int

Kuriyama Tigerflex® Heavy-Duty Material Handling Hose, Series: UBK™ Nominal Size: 5 in, 5.69 in OD, 5 in ID, 1 ft Length, 30 psi, Material Construction: Polyurethane, PVC Cover, Construction: Polyurethane Liner and Rigid PVC Helix, Black, 10 in Bend Radius, Resistance Properties: Abrasion, Oil, -40 deg F Low, 150 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      10 in
Color      :      Black
Construction      :      Polyurethane Liner and Rigid PVC Helix
Cover Material      :      PVC
Inside Diameter      :      5 in
Length      :      20 ft
Material      :      Polyurethane
Material Construction      :      Polyurethane
Nominal Size      :      5 in
Outside Diameter      :      5.69 in
Pressure Rating      :      30 psi
Product Type      :      Material Handling Hose
Resistance Properties      :      Abrasion, Oil
Series      :      UBK™
Sub Brand      :      Tigerflex®
Temperature High      :      150 deg F
Temperature Low      :      -40 deg F
  • Thick abrasion-resistant polyurethane liner designed for dry applications where severe abrasion is a factor, provides for longer hose life and lower operating costs versus rubber or PVC hoses
  • Static dissipative cover specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly
  • Cold Flex™ materials hose remains flexible in severe sub-zero temperatures
  • Easy slide rigid helix design protects hose tube from cover wear and allows hose to slide easily over rough surfaces and around corners, easy to handle
  • Oil-resistant polyurethane liner resists most animal and petroleum-based oils
  • Phthalate-free
  • Made in USA

Applications: For agricultural dry fertilizers, air seeder lines, fly ash collection, heavy-duty abrasive material handling, industrial vacuum equipment, milling machine scrap recovery, rock, gravel, sand and crushed concrete vacuuming and shot blast recovery

  • Cut Sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Kuriyama_UBK500X20_SS.pdf
