Latrobe Foundry AL90S100 AL90S100

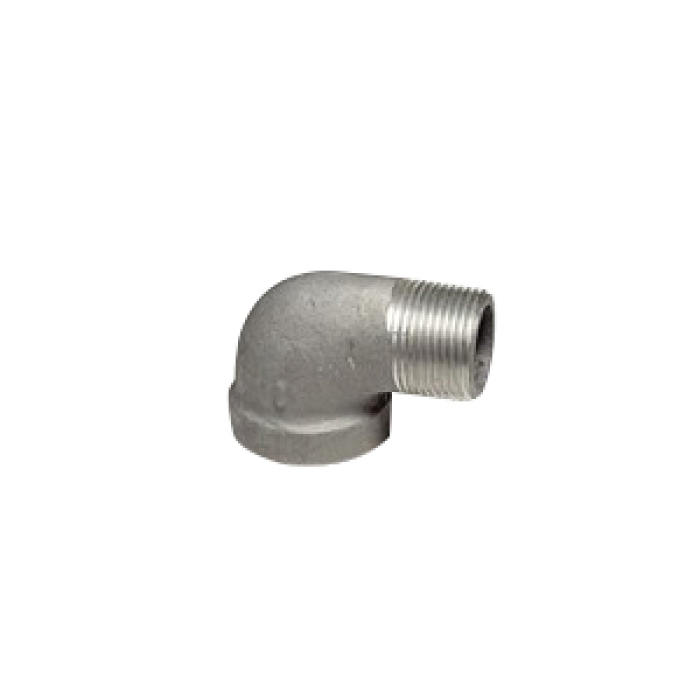

Latrobe Foundry 356-F Aluminum 90 deg Short Radius Street Elbow

Latrobe Foundry 90 deg Short Radius Street Elbow, NPT X NPT, 356-F Aluminum, 150 lb

pin-int

Latrobe Foundry 90 deg Short Radius Street Elbow, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 1 in, Thread Size 1: 1-11-1/2, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, 150 lb, Material Construction: 356-F Aluminum, Dimension Standards: ASME B1.20.1, MIL-DTL-52618-E

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      NPT
Connection Type 2      :      NPT
Dimension Standards      :      ASME B1.20.1, MIL-DTL-52618-E
Gender 1      :      Male
Gender 2      :      Female
Material      :      Aluminum
Material Construction      :      356-F Aluminum
Pressure Rating      :      150 lb
Shape      :      90 deg Elbow
Thread Size 1      :      1-11-1/2
Thread Size 2      :      1-11-1/2
  • Fittings are right hand threaded
  • The fittings have a general conformance with dimensional standard MIL-DTL-52618-E
  • Fittings are random tested at 120 lb of air pressure under water, for a normal surface condition rating of 150 lb of pressure
  • Individual fittings are not marked with alloy or pressure data
  • Fittings are not anodized
  • All threaded elbows are short radius
