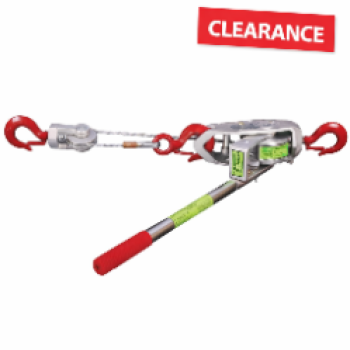

Lincoln® LH 4000-20

Lincoln® Cable Ratchet Winch Hoist, Series: Standard, Load Capacity: 1 ton, 20 ft Height Lifting, 1/4 in Chain, Material Construction: Forged Steel

• Load tested to 125% of rated capacity
• Handle bends to alert operator of overload
• Interlocking pawl mechanism - no brakes to slip
• Quick release allows cable to be pulled out freely when rigging
• Maintenance-free bearings are lubed for life
• Reversible handle allows pulling in optimum position
• Open frame construction for easy inspection and cleaning
• Four hook styles designed to meet application requirements and work practice standards
• USA made 360 deg swivel hooks are drop forged, heat treated steel
• Hydraulically crimped copper sleeve for more uniform hold
• All cable stores on drum

• Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Lincoln_LH 4000-20_II.pdf
• Technical Drawing/Parts Diagram https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Lincoln_LH 4000-20_TD.pdf
