McKissick® 109064 109064

McKissick® 109064

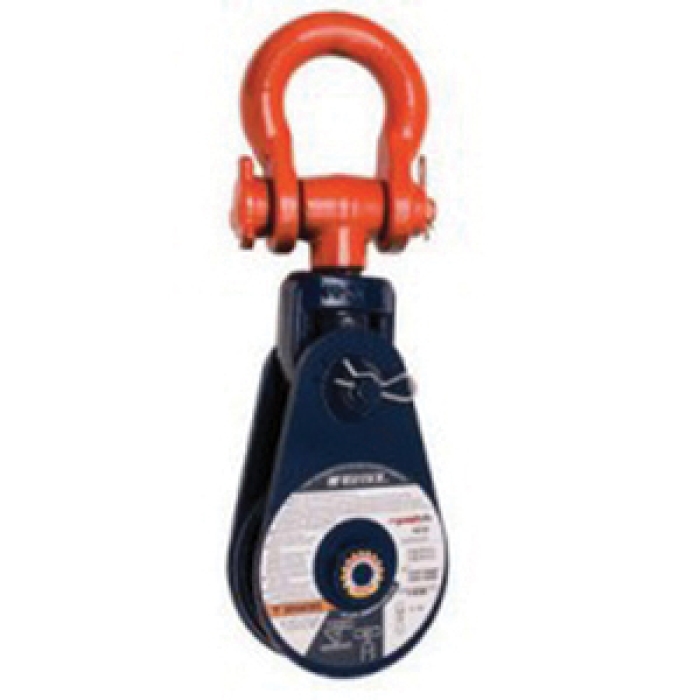

McKissick® 419 Light Champion Single Sheave Snatch Block with Shackle, 4 ton, 13.38 in L, 4.24 in W

  • Manufacturer: Crosby Group
  • Brand: McKissick®
  • ARGPN: 109064
  • MPN: 109064
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Crosby Group factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

McKissick® Light Champion Single Sheave Snatch Block with Shackle, Series: 419, Load Capacity: 4 ton, 4-1/2 in Sheave, 3/8 - 1/2 in Rope, Dimensions: 13.38 in L x 4.24 in W

Dimensions      :      13.38 in L x 4.24 in W
Load Capacity      :      4 ton
Product Type      :      Snatch Block
Rope Size      :      3/8 - 1/2 in
Series      :      419
Sheave Size      :      4-1/2 in
  • Opening feature permits easy insertion of rope without reeving, or while the block is suspended
  • Bolt for opening feature is retained, to ensure no lost bolts
  • Forged steel swivel tees, yokes and hooks
  • Can be furnished with bronze bushings or roller bearings
  • Center pin equipped with pressure lube fittings
  • All sizes feature sheave grooves suited for a range of wire line diameters
  • Meets or exceeds all requirements of ASME B30.26 including identification ductility, design factor, proof load and temperature requirements fatigue life and material traceability
  • All alloy snatch blocks feature a significant reduction in weight compared to snatch blocks made of non-alloy materials
  • Crosby® engineered solutions group is ready to discuss your requirements and help select or develop the ideal block for your application
  • Fatigue-rated
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/McKissick_109037_CAT.pdf
