McKissick® 1035564 1035564

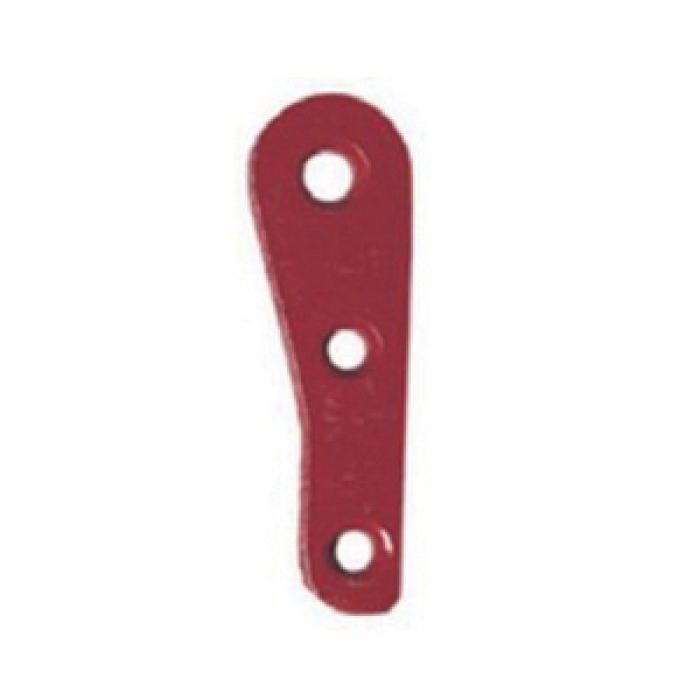

McKissick® TERMINATOR® Red Self-Colored Cast Steel Replacement Wedge

McKissick® TERMINATOR® Replacement Wedge, Self-Colored, Red, Cast Steel

  • Add to cart
    Add To Favorites
    • pin-int

    McKissick® TERMINATOR® Replacement Red Wedge, Socket Size: 1/2 in, Material Construction: Cast Steel, Finish: Self-Colored, For Use With: S-421T Wire Rope

    Finish      :      Self-Colored
    For Use With      :      S-421T Wire Rope
    Material      :      Steel
    Material Construction      :      Cast Steel
    Product Type      :      Wedge
    Socket Size      :      1/2 in
    Sub Brand      :      TERMINATOR®
    • Secures the tail or "dead end" of the wire rope to the wedge, thus eliminates loss or "punch out" of the wedge
    • The TERMINATOR™ wedge eliminates the potential breaking off of the tail due to fatigue
    • The tail, which is secured by the base of the clip and the wedge, is left unreformed
    • Incorporates Crosby's patented Quic-Check® "Go" and "No-Go" feature cast into the wedge
    • The wire rope should pass thru the "Go" hole in the wedge
    • The wire rope should not pass thru the "No-Go" hole in the wedge
    • The 3/8 through 1-1/8 standard S-421 wedge socket can be retrofitted with the new style TERMINATOR™ wedge
    • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Crosby_1004331_CAT.pdf
    • Cut sheet https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/McKissick_1035000_SS.pdf
    • Installation Instructions https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/McKissick_1035564_II.pdf
