MIDLAND INDUSTRIES 20047 PCB68-2-0

MIDLAND INDUSTRIES 20047

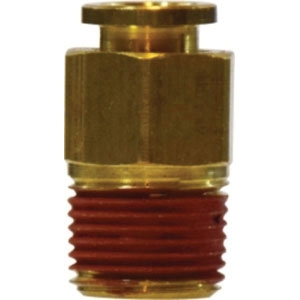

MIDLAND INDUSTRIES 20047 Brass Straight Connector with Gaskets, 1/8 in Push-to-Connect x 10-32 MNPTF

  • Manufacturer: Midland Industries
  • Brand: MIDLAND INDUSTRIES
  • ARGPN: PCB68-2-0
  • MPN: 20047
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Midland Industries factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

MIDLAND INDUSTRIES Straight Connector with Gaskets, Connection Type 1: Push-to-Connect, Connection Size 1: 1/8 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 10-32, Hex Size: 0.37 in, 290 psi, Material Construction: Brass, -10 to 200 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/8 in
Connection Size 2      :      10-32
Connection Type 1      :      Push-to-Connect
Connection Type 2      :      NPTF
Gender 2      :      Male
Hex Size      :      0.37 in
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      290 psi
Shape      :      Straight Connector
Temperature Rating      :      -10 to 200 deg F
  • Quick-connect, simply push tubing in, no tools, saves up to 75% of assembly time of standard compression fittings
  • Quick-disconnect, hold two fingers on insert and pull tubing out, no tools required
  • Reusable, connect and disconnect numerous times
  • Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
  • Positive seal, no leaks, after tubing is inserted, seal is made
  • Secure tube retention, pulling on tubing only serves to tighten the connection
  • Self contained assembly, no loose parts, brass body and insert
  • NPTF with Teflon®-based sealant pre-applied
  • Straight connectors have interior hex for Allen key tightening where space is limited, no need to use a wrench
  • Furnished with gaskets
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_Metals_10022_CAT.pdf
