MIDLAND INDUSTRIES 32102 JS-04-05

MIDLAND INDUSTRIES 32102

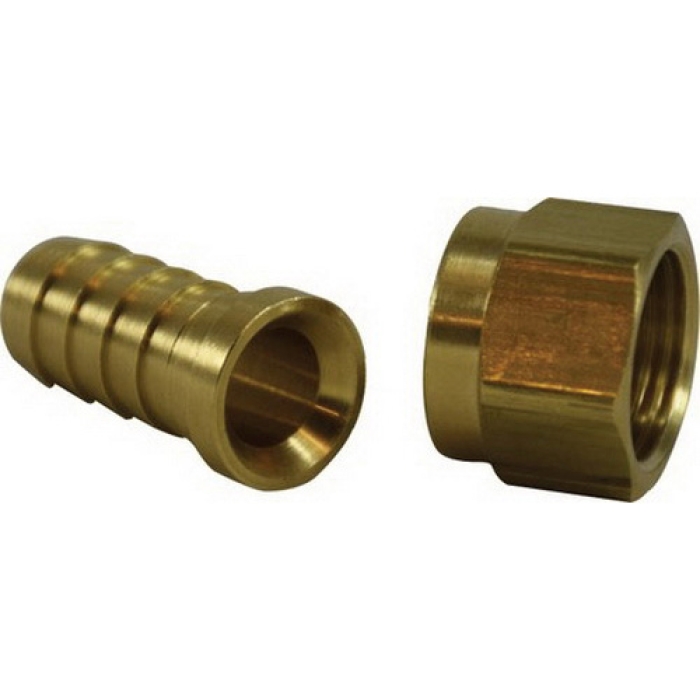

MIDLAND INDUSTRIES 32102 Swivel Adapter, 1/4 in Hose x 5/16 in 45 deg Flared Female, Brass

  • Manufacturer: Midland Industries
  • Brand: MIDLAND INDUSTRIES
  • ARGPN: JS-04-05
  • MPN: 32102
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Midland Industries factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

MIDLAND INDUSTRIES Swivel Adapter, Adapter Fitting, 1/4 in Connection Size 1, Connection Type 1: Hose, 5/16 in Connection Size 2, Connection Type 2: 45 deg Flared Female, Hose|Female Flared Connection, Brass, Material Construction: Brass, 1/2-20 Thread, 0.62 in Hex, For Use With: Hose Clamp, Similar Type Clamp or A Crimped Ferrules, 1.61 in L, 150 psi Maximum Operating Pressure, Additional Information: 0.06 lb Weight

California residents see Prop 65 WARNINGS

Additional Information      :      0.06 lb Weight
Connection Size 1      :      1/4 in
Connection Size 2      :      5/16 in
Connection Type      :      Hose|Female Flared
Connection Type 1      :      Hose
Connection Type 2      :      45 deg Flared Female
Dimensions      :      1.61 in L
Fitting Type      :      Adapter
For Use With      :      Hose Clamp, Similar Type Clamp or A Crimped Ferrules
Gender 2      :      Female
Hex Size      :      0.62 in
Material      :      Brass
Material Construction      :      Brass
Maximum Operating Pressure      :      150 psi
Shape      :      Hose Barb
Temperature Rating      :      -40 to 160 deg F
Thread Size      :      1/2-20
Thread Size 2      :      1/2-20
  • Catalog https://www.teamarg.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_Metals_10022_CAT.pdf
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/AMC_0036004_Catalog.pdf
  • Full Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/MIDLANDINDUSTRIES_32102_Full_Engineering_Drawing.pdf
