MIDLAND INDUSTRIES 65692 BIFL050

MIDLAND INDUSTRIES 65692

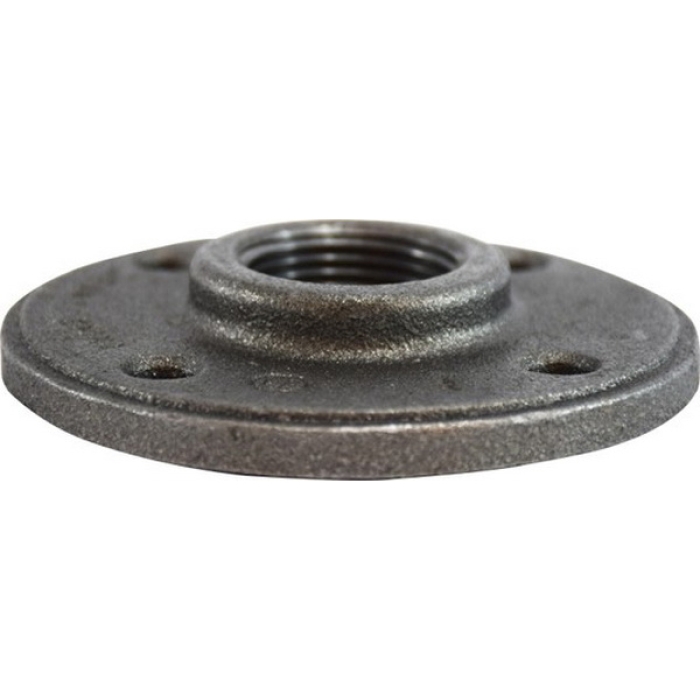

MIDLAND INDUSTRIES 65692 Black Malleable Iron Round Floor Flange, 1/2 in

  • Manufacturer: Midland Industries
  • Brand: MIDLAND INDUSTRIES
  • ARGPN: BIFL050
  • MPN: 65692
  • ARG Industrial Available for Pickup - Anchorage, AK Branch: loading Click here
  • ARG Industrial Available for Shipping: loading
  • Available for Midland Industries factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

MIDLAND INDUSTRIES Round Floor Flange, Connection Size 1: 1/2 in, 150 lb, 1/4 in Bolt Hole Diameter, 1/2 in Thick Flange, Material Construction: Malleable Iron, Black, Dimensions: 3-1/2 in OD, Dimension Standards: ANSI B16.3, ANSI B2.1 or BS 21, ASME B1.20.1, -20 to 350 deg F

California residents see Prop 65 WARNINGS

Bolt Hole Diameter      :      1/4 in
Color      :      Black
Connection Size 1      :      1/2 in
Dimension Standards      :      ANSI B16.3, ANSI B2.1 or BS 21, ASME B1.20.1
Dimensions      :      3-1/2 in OD
Flange Thickness      :      1/2 in
Material      :      Malleable Iron
Material Construction      :      Malleable Iron
Pressure Rating      :      150 lb
Shape      :      Flange
Temperature Rating      :      -20 to 350 deg F

Our quality fittings are made with care and attention to detail. With better molds we can reduce parting lines and rough edges resulting in better fluid flow. By using a low temperature galvanizing process the coating is more durable which means a longer lasting fitting.
