MIDLAND INDUSTRIES 680421 PCD68-4-1

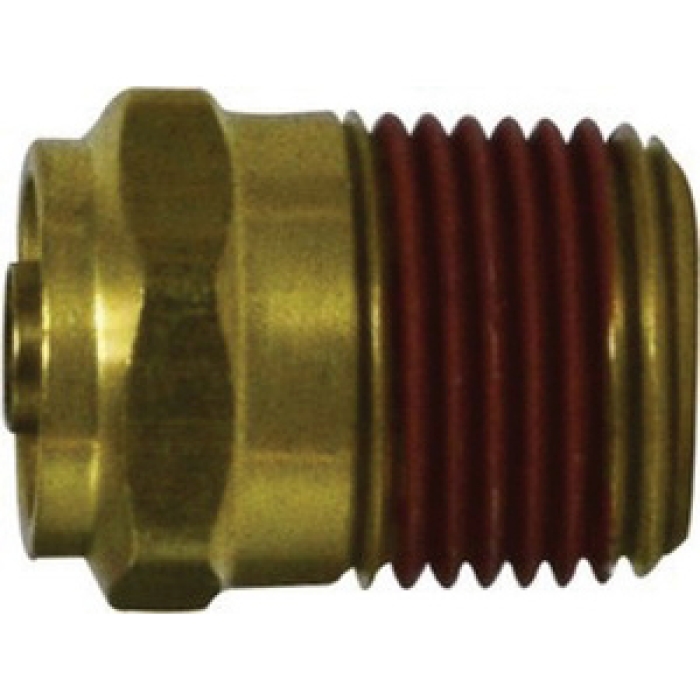

Midland Industries Brass Connector

Midland Industries Connector, Push-to-Connect X NPTF, Brass, 150 psi

  • ARGPN: PCD68-4-1 loading
    • Connection Size 1:
  • Add to cart
    Add To Favorites
    • pin-int

    MIDLAND INDUSTRIES Connector, Connection Type 1: Push-to-Connect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/16 in, 150 psi, Material Construction: Brass, Dimension Standards: SAE J1131, -40 to 200 deg F

    California residents see Prop 65 WARNINGS

    Connection Size 1      :      1/4 in
    Connection Size 2      :      1/16 in
    Connection Type 1      :      Push-to-Connect
    Connection Type 2      :      NPTF
    Dimension Standards      :      SAE J1131
    Gender 2      :      Male
    Material      :      Brass
    Material Construction      :      Brass
    Pressure Rating      :      150 psi
    Shape      :      Connector
    Temperature Rating      :      -40 to 200 deg F

    D.O.T. fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied Teflon®-based pipe sealant to provide for easy assembly and leak proof seal.

    • Fast assembly, no tools required
    • Simply push tubing in, saves up to 75% of assembly time compared to standard air compression fittings
    • No loose parts to handle
    • Fast disconnect, hold the collet collar with two fingers and pull out tube, no tools required
    • Reusable, can be connected and disconnected several times
    • Reliable sealing, using recommended tubing, full sealing is guaranteed
    • Buna-N O-ring standard
    • Pre-applied Teflon® based pipe sealant on all male pipe threads, saving customer additional labor
    • Full flow design, provides more flow area
